Standard: API 5CT PSL1/ PSL2, ISO13680

Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, C95, P110, Q125

Size: OD: 48.26mm-508mm, WT: 3.18-16mm, LENGTH: R1, R2, R3

Product Detail | Technical Information | Packaging

Product Detail

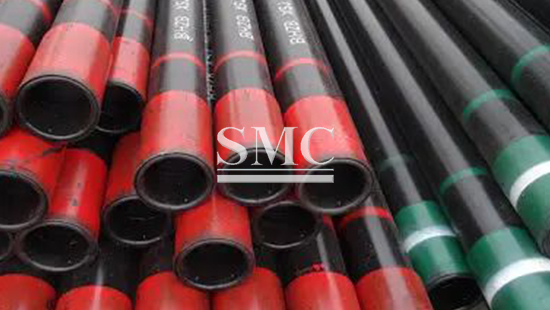

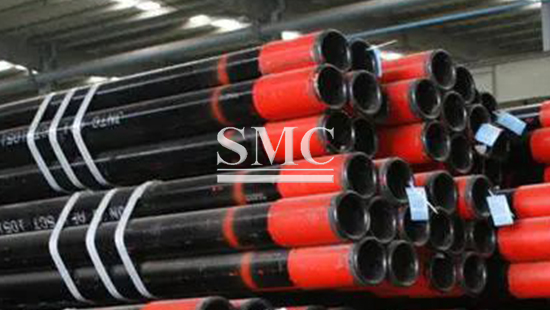

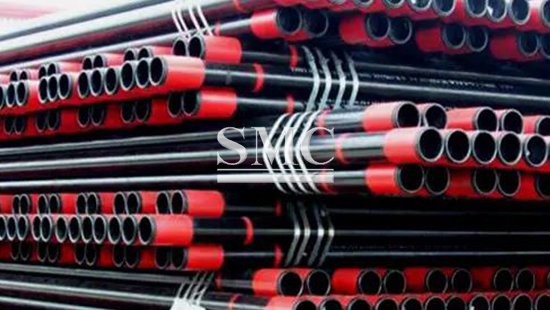

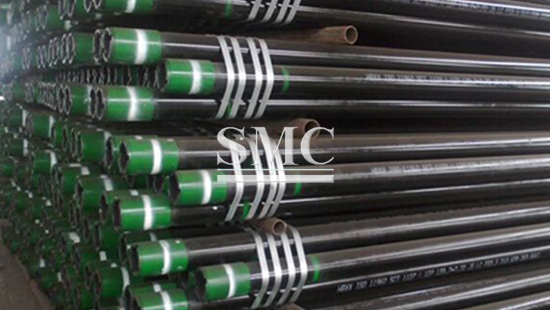

Shanghai Metal Corporation is Oil Casing Pipe Well Casing Tube manufacturer and supplier.

Oil Casing Pipe Well Casing Tube is a hollow steel tube that is typically rammed into place through the earth by using a hydraulic or pneumatic jack. After being driven, the displaced soil is removed and the product pipe, or carrier pipe, is inserted inside the steel tube.

Oil Casing Pipe Well Casing Tube is applicable to the following connections which comply with API SPEC:

SC: Short round thread casing

LC: Long round thread casing

BC: Buttress thread casing

NU: Non-upset tubing

EU: External upset tubing

IJ: Integral tubing connections

If you want to know more about our Oil Casing Pipe Well Casing Tube price, please feel free to contact us, we will reply you within 24 hours.

Standard: API Spec 5CT, ISO13680

Grade: J55, N80-1,N80-Q, L80-1, L80-9Cr, L80-1,C90, T95, C95, P110, Q125.

OD: 48.26-508mm.

WT: 3.18-16mm.

LENGTH: Range 1(6.10-7.32), Range 2(8.53-9.75), Range 3(11.58-12.80)

Seamless Casing

ERW Casing

Casing nipple

Casing coupling

Oil Well Extracting

Borehole

Borewell

Technical Information of Oil Casing Pipe Well Casing Tube:

Oil Casing Pipe Well Casing Tube is a pipe that is placed inside the borewell through the casing pipe. It is responsible for the transportation of the hydrocarbons to the surface. It is an oil well tubing either used for transporting natural gas or crude oil to the facilities for further processing after the drilling is complete. Similar to the drill pipe and casing, tubing also is subjected to high pressure during the extraction process and hence needs to be thick, strong, and sturdy. Oil Casing Pipe Well Casing Tube is used for transporting natural gas or crude oil after the drilling is complete. It transports the gas and oil to the facilities for further processing.

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	HardnessMax (HRC)	HardnessMax(HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-

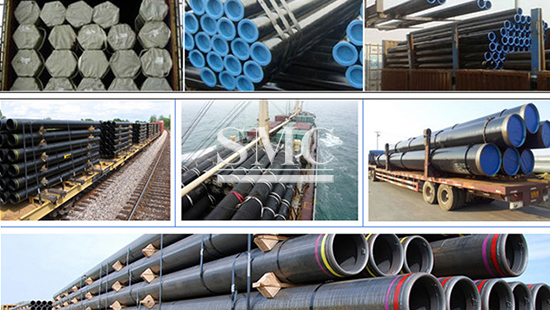

Packaging of Oil Casing Pipe Well Casing Tube:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product and quality information.

1)SMC Standard

2)Customization
