Standard: ASTM/ JIS/ GBT/ EN etc

Thickness: 0.17mm ~ 2.0mm

Width: 600mm ~ 1500mm

Product Detail | Technical Information | Packaging | More

Product Detail

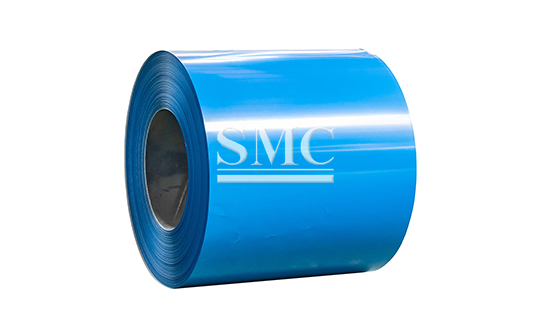

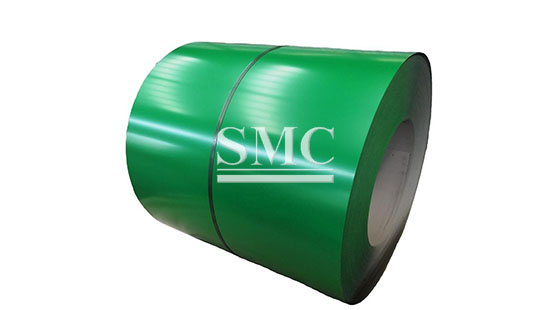

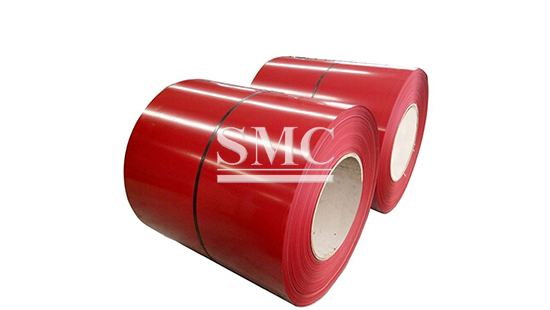

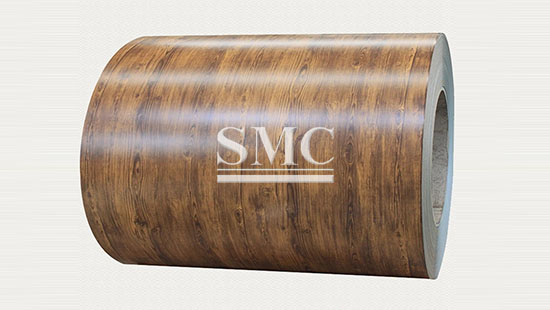

Shanghai Metal Corporation is a professional manufacturer of SMP Prepainted Galvanized Steel Coil.

SMP (Silicone Modified Polyester) Pre-Painted Galvanized Steel Coil includes ColorZinc SP-20, ColorFan RSP-20F and ColorLume RSP-20L, all use a 2 coat 2 bake system (2C2B) with Silicone Modified Polyester (SMP) as the topcoat. As for the substrate, it can be chosen from hot-dip zinc, 5% Al-Zn alloy and 55% Al-Zn alloy coated steel coil. In other words, those are the superior pre-painted steels with the same paint coating system but different base metals. Our products provide excellent characteristics, such as resistance against corrosion & weathering, excellent color durability and a wide range of pleasing colors.

With over 30 year’s production experience, SMC has accumulated the advantage and techniques with high quality and reasonable price. If you want to know more about SMP Prepainted Galvanized Steel Coil, please feel free to contact us, we will reply you within 24 hours.

1. Steel Grade: SGCC, DX51D, S250GD, S550GD etc

2. Top paint/ back paint: 5+15μm/ 7-9μm or as per client’s needs

3. Zinc coating: Z150 ~ Z275

4. Color: Any color as per client’s needs

5. Coil weight: as per client’s needs

SMP Pre-Painted Galvanized Steel Coil can be used in coastland with severe corrosion, and heavily polluted chemical industrial districts. It can also be used in any heavily corroded, freezing and hot environments, and areas under strong sunlight. Coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.

SMP Pre-Painted Galvanized Steel Coil is suitable to be used for roofing, siding, garages, storerooms and water pipes of buildings in the light polluted environments, such as industrial district, business district, residential district, suburban area, rural area and so forth.

1. Construction and building: roofing; ventilating duct; handrail; partition panel;

2. Electric appliance: refrigerator; washing machine; microwave; DVD

3. Transportation: oil tank; road sign

4. Agriculture:barn

5. Others

Technical Information of SMP Prepainted Galvanized Steel Coil:

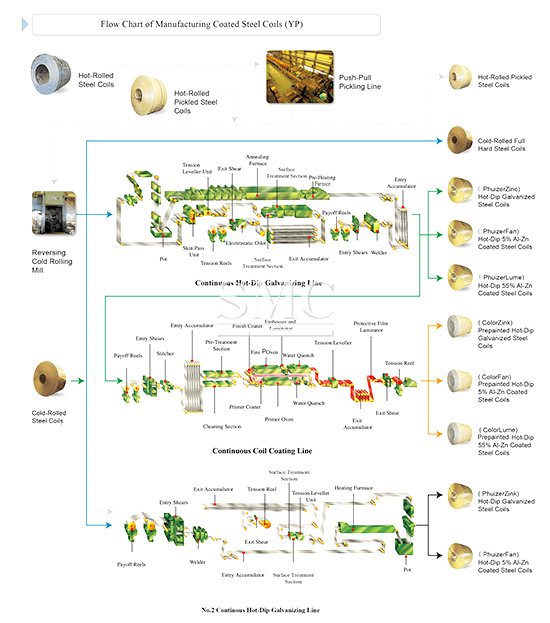

Process Flow Diagram of PPGI:

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel

Product	Grade	Thickness (mm)		Width（mm)		Paint Type
Product	Grade	From	To	From	To	PE SMP PVDF PU
ColorZink	Deep Drawing Steel	0.40	1.20	600	1550
	Commercial Steel	0.23	2.00	600	1550
	Structural Steel	0.23	1.30	600	1550
ColorFan	Deep Drawing Steel	0.40	1.20	600	1550
	Commercial Steel	0.23	2.00	600	1550
	Structural Steel	0.23	1.30	600	1550
ColorLume	Deep Drawing Steel	0.40	1.20	600	1550
	Commercial Steel	0.23	2.00	600	1550
	Structural Steel	0.23	1.30	600	1550

Product Type	Coating Type	Product Spec	Coating Thickness	Surface Treeatment
Pre-painted hot- dip galvanized steel coil(ColorZink) Pre-painted 5% AI-Zn coated steel coil (ColorFan) Pre-painted 55% AI-Zn coated steel coil (ColorLume)	PE SMP ACRYLIC PVDF	CNS 10804(2013） CNS15298(2013) CNS15299(2013) JIS G3312(2013) JIS G 3318(2013) JISG3322(2013) ASTM A755M(2016) AS 2728(2013) EN 10169 A1(2010)	Primer: PU or Epoxy 5 μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm	Protective film can be applied Metal embossed Cedar wood Stucco Leather

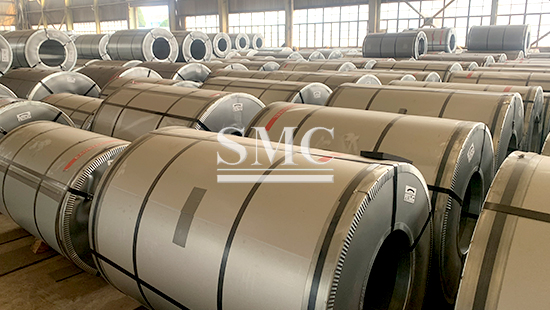

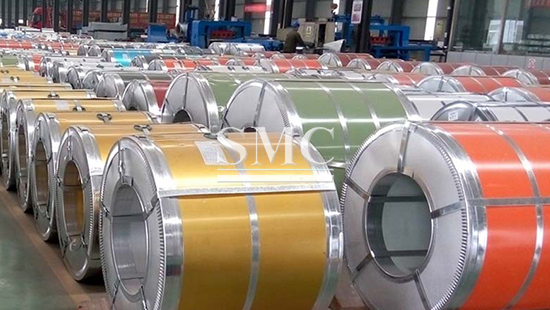

Packaging of SMP Prepainted Galvanized Steel Coil:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

The strippable film can be stuck on the surface of these three categories of SMP Pre-Painted Galvanized Steel Coil subject to customers’ requirement. The strippable film can decrease the mechanical damages caused during transporting, storing or the forming processes.

1)SMC Standard

2)Customization

Substrate

1.ColorZinc SP-20 uses hot-dip galvanized steel sheets as its substrate. According to ASTM A653M standard, coating mass is Z275 (total both sides, 275g/m2 min.)

2. ColorFanR SP-20F uses 5% Al-Zn alloy coated steel sheets as its substrate. According to ASTM A875M standard, coating mass is ZGF 275 (total both sides, 275g/m2 min.)

3. ColorLumeR SP-20L uses 55% Al-Zn alloy coated steel sheets as its substrate. According to ASTM A792M standard, coating mass is AZM150 (total both sides, 150g/m2 min.)

Standard thickness of substrate is 0.576mm. Other thickness is also available subject to customers’ needs.Prevention the metal or alloy from oxidizing or corroding at high temperatures
