Stainless Steel Tube

Stainless Steel Oval Pipe/Elliptical Pipe

    Grade: 301, 304, 304L, 316, etc.


    Standard: ASTM, AITI, JIS, GB


    Finish Condition: Pickled, annealed, polished

Shanghai Metal Corporation is a leading stainless steel oval pipe/elliptical tube manufacturer and supplier.

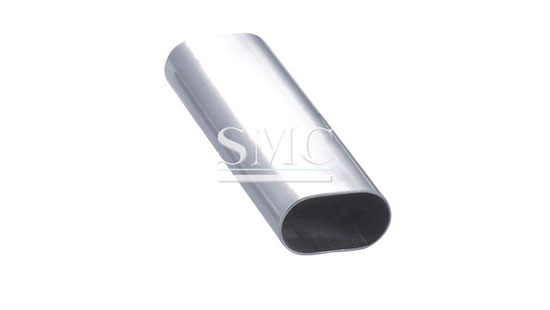

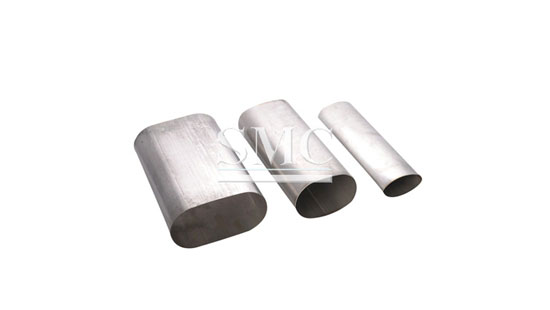

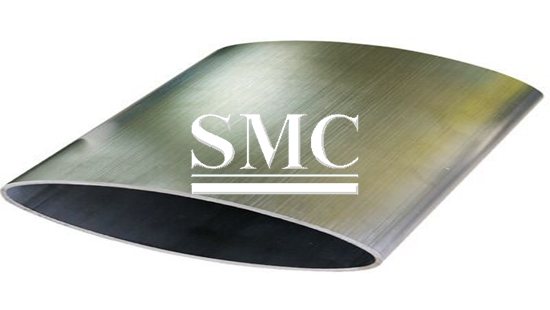

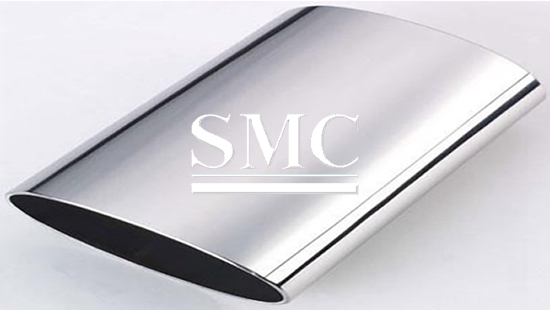

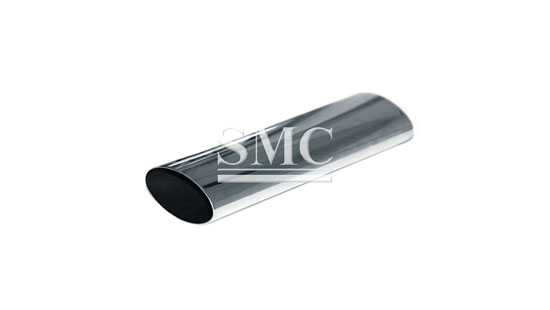

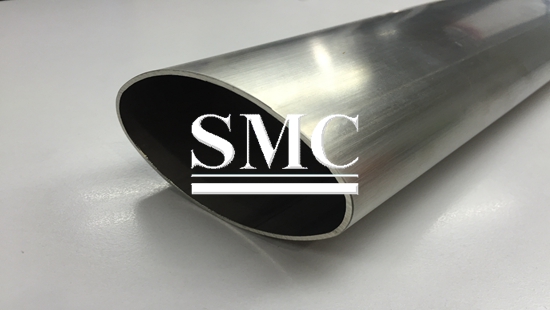

The stainless steel oval pipe/elliptical tube is generally extruded into a duck egg shape on the basis of a circular tube. The elliptical shaped tube is divided into a positive ellipse and a flat ellipse, the positive ellipse refers to a symmetrical egg shape, and the flat ellipse refers to two long surfaces parallel to a straight line. The two short faces are in the shape of an arc.

Mainly used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures.

If you want to know more about our stainless steel products or stainless steel oval pipe/elliptical tube price please feel free to contact us, we will reply you within 24 hours.


Specifications of Stainless Steel Oval Pipes:


1. Process method: Cold drawn/welded

2. Material: 304/L/H, 316/L/H/TI, 321/H, 347/H, 317/LM/LMN, 309S/H, 310S/H, SAF2205, etc
3. Standard:CNS 5802, JIS G3446 and ASTM A554 EN, etc
4. Finish Condition: Pickled, annealed, polished
5. Application: construction, upholstery instrument, etc
6. Packing: As required


Production line

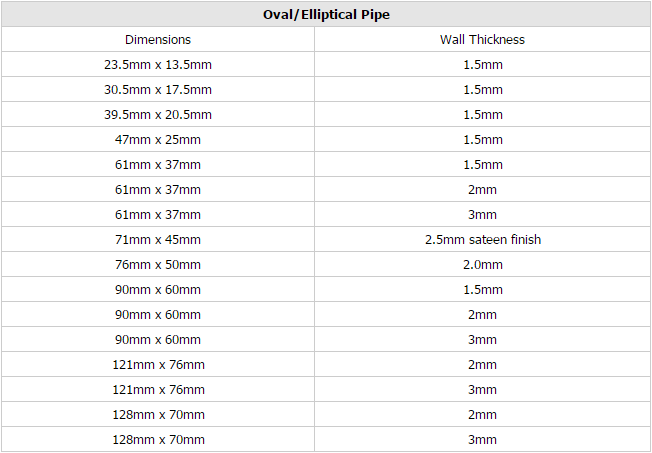

Dimensions of Oval/Elliptical Pipe:

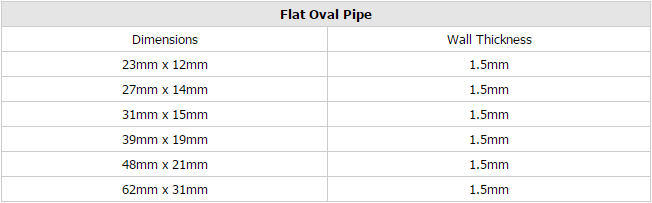

Flat Oval Pipe:



Manufacturing Process of Stainless Steel Pipes/Tubes:

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

Packaging of Stainless Steel Tubes/Pipes:


Please don’t worry that our products are packed, stored, transported according to the international regulation. We do care about the quality of our products; even some little details are paid attention to.

We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.

Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.



FAQ

Q: Can you do polished finish for the tubes/pipes?

A: Yes, for welded tubes/pipes, we can do mirror polishing, 600# polishing, 500# polishing, 320# polishing, 240# polishing and so on, brushed finish is also available. For seamless tubes/pipes, normally the surface is pickled finish, while brushed finish is also doable.


Q: What’s your standard package?

A: Our standard package is waterproof plastic bags with wraps. For advanced packing, we can provide round paper tube for each tube, and wooden/metal case for exterior packing.


Q: Where’s your main market?

A: South America, Mid-east, South-east Asia, Europe and so on.


Q: Do you also have the accessories for the tubes?

A: Yes we can provide the accessories too.


Q: What length is your standard length? Can I have the tubes/pipes cut into the length I want?

A: Our standard length is 3meter, 4meter, 5meter, 6meter. If you length is less than 3meter, we will have to run an additional processing for cutting which will bring some more costs. The minimum length is 500mm. For seamless tubes, we can make maximum to 12, 13meters.
