Stainless Steel Tube

Stainless Steel Rectangular Pipe

    Grade: 301, 304, 304L, 316, etc.


    Standard: ASTM, AITI, JIS, GB


    Wall Thickness: From 0.3 mm

Shanghai Metal Corporation is a leading stainless steel rectangular pipe manufacturer and supplier.

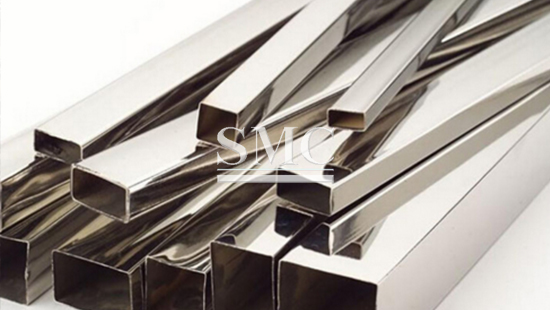

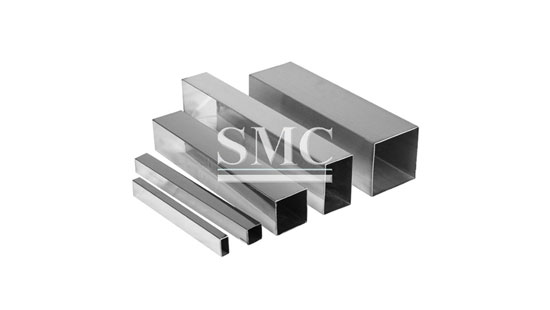

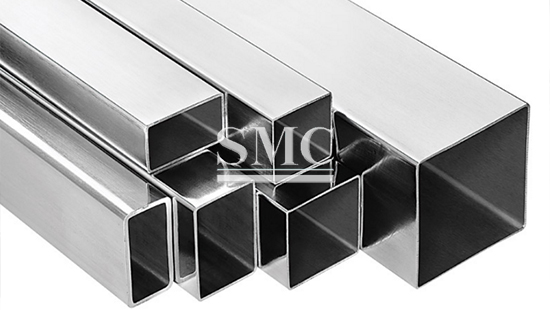

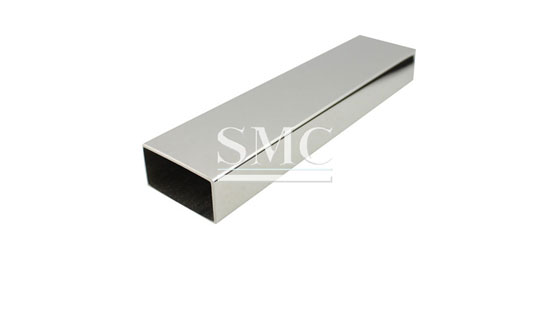

Stainless steel rectangular tube is a kind of hollow long steel, which is used as a pipeline for conveying fluids, such as petroleum, natural gas, water, gas, steam, etc. In addition, when the bending and torsional strength are the same, the weight is light, so It is also widely used in the manufacture of mechanical parts and engineering structures. Also used to produce a variety of conventional weapons, barrels, shells and so on.

If you want to know more about our stainless steel products or stainless steel rectangular pipe price please feel free to contact us, we will reply you within 24 hours.


Specifications of Stainless Steel Rectangular Pipes:


1. Standard: GB, ASTM, JIS, DIN
2. Grade: 201, 202, 301, 304, 304L, 304N, 310, 316, 316L, 321, 409L, 410, 430, 439L, 904L, etc
3. Outside Diameter: 20*10mm to 100*80mm
4. Wall Thickness: 0.3mm—3mm
5. Length: as demand
6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled and so on
7. Applications: Frames, roll cages, truck racks, trailers, railings, etc.
8. Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
9. Mechanical Properties: Brinell = 170, Tensile = 85,000 +/-, Yield = 34,000 +/-, Nonmagnetic

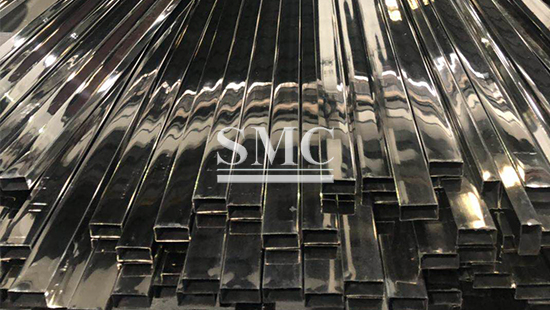

Production line









Manufacturing Process of Stainless Steel Pipes/Tubes:

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.



Packaging of Stainless Steel Tubes/Pipes:


Please don’t worry that our products are packed, stored, transported according to the international regulation. We do care about the quality of our products; even some little details are paid attention to.

We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.

Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.

FAQ

Q: Can you do polished finish for the tubes/pipes?

A: Yes, for welded tubes/pipes, we can do mirror polishing, 600# polishing, 500# polishing, 320# polishing, 240# polishing and so on, brushed finish is also available. For seamless tubes/pipes, normally the surface is pickled finish, while brushed finish is also doable.


Q: What’s your standard package?

A: Our standard package is waterproof plastic bags with wraps. For advanced packing, we can provide round paper tube for each tube, and wooden/metal case for exterior packing.


Q: Where’s your main market?

A: South America, Mid-east, South-east Asia, Europe and so on.


Q: Do you also have the accessories for the tubes?

A: Yes we can provide the accessories too.


Q: What length is your standard length? Can I have the tubes/pipes cut into the length I want?

A: Our standard length is 3meter, 4meter, 5meter, 6meter. If you length is less than 3meter, we will have to run an additional processing for cutting which will bring some more costs. The minimum length is 500mm. For seamless tubes, we can make maximum to 12, 13meters.
