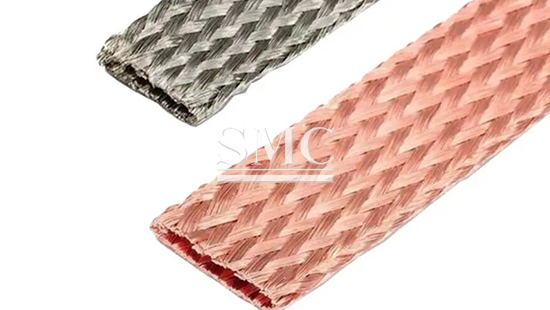

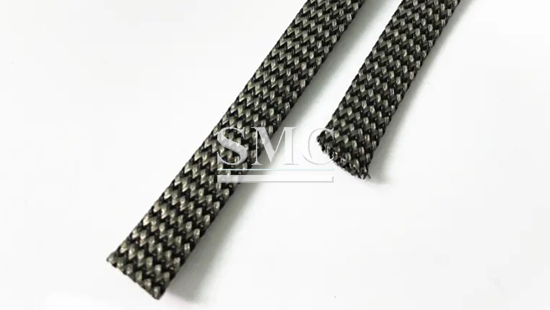

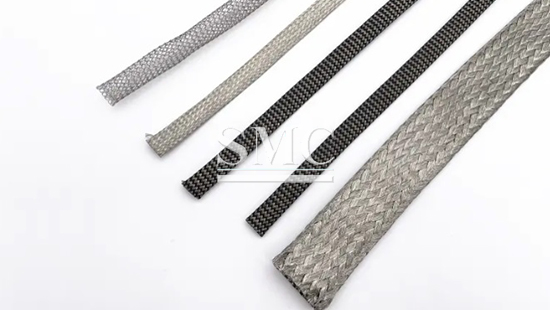

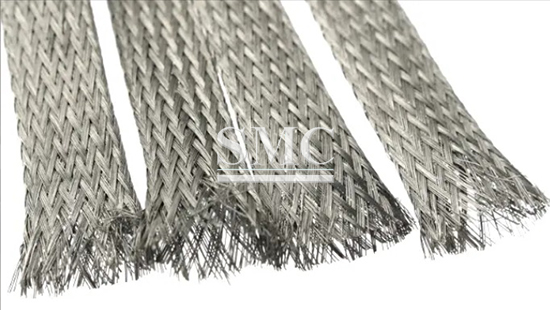

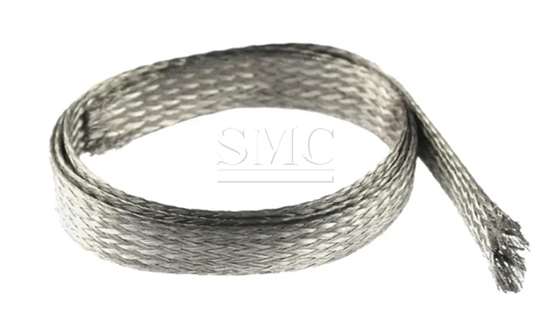

Tinned Copper Wire Braided Sleeve/ Anti Wave Sleeve
Material: Copper
Type: Braided sleeve
Rated voltage: 600V
Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Tinned copper wire braided sleeve in China. We provide the high quality matched products and excellent services for various industries.
AWC-2 series high-performance braided sleeve is refined of tinned copper wire,commonly used in industrial and electronic fields. The product is corrosion-resistant, clean and beautiful in appearance, can improve the pressure-bearing capacity of the finished hose, high and low temperature resistance,extend the service life of the pipe body, and reduce the cost. It is widely used in machinery, chemical industry, metallurgy, construction and other industries to shield and protect wires and cables.
If you want to know more about our Tinned copper wire braided sleeve, please feel free to contact us, we will reply you within 24 hours.
Tinned Copper Wire Braided sleeve
|
Type |
Folding path(mm) |
As supplied diameter(mm) |
Minimum diameter(mm) |
Maximum diameter(mm) |
Maximum weight(g/m) |
Recmmended outer diameter(mm) |
Standard packaging(m/roll) |
|
AWC-2-01 |
1.8 |
1.2 |
1 |
2 |
3.77 |
1.5 |
200 |
|
AWC-2-03 |
4.5 |
3 |
2 |
4 |
6.28 |
3 |
200 |
|
AWC-2-05 |
7 |
4.5 |
3 |
6 |
16.96 |
5 |
100 |
|
AWC-2-08 |
12 |
8 |
6 |
10 |
33.93 |
8 |
100 |
|
AWC-2-13 |
20 |
13 |
10 |
16 |
60.32 |
13 |
100 |
|
AWC-2-20 |
30 |
20 |
16 |
24 |
135.7 |
20 |
50 |
|
AWC-2-25 |
40 |
27 |
24 |
30 |
152.7 |
27 |
50 |
|
AWC-2-35 |
52 |
35 |
30 |
40 |
204.3 |
35 |
50 |
|
AWC-2-45 |
70 |
47 |
40 |
55 |
271.4 |
47 |
50 |
|
AWC-2-55 |
85 |
57 |
55 |
60 |
339.3 |
57 |
50 |
Packaging of Tinned copper wire braided sleeve/Anti wave sleeve
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
