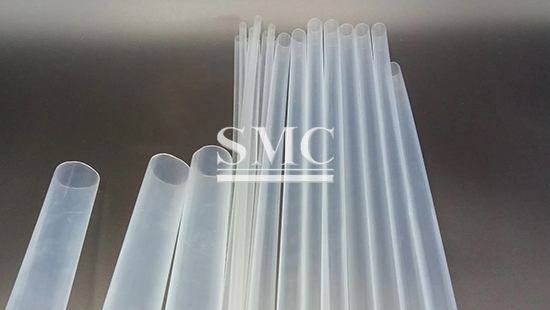

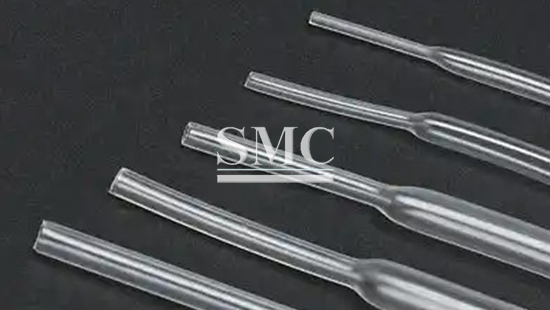

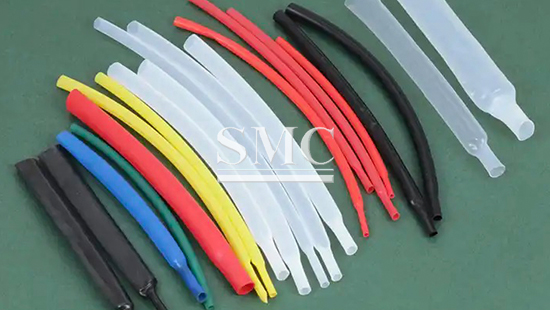

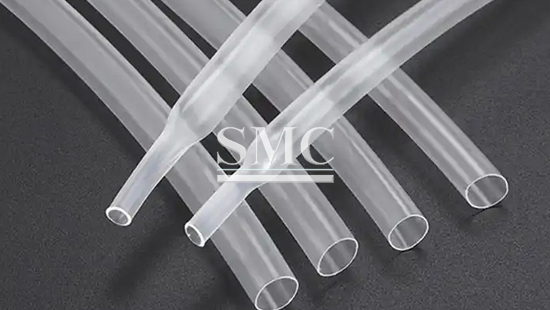

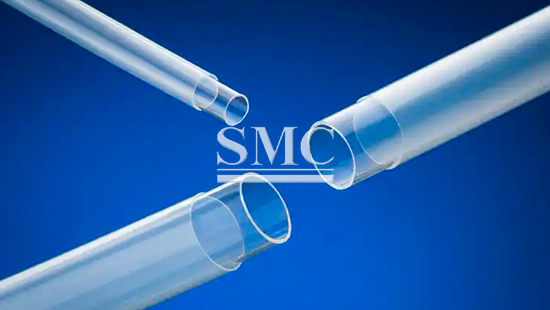

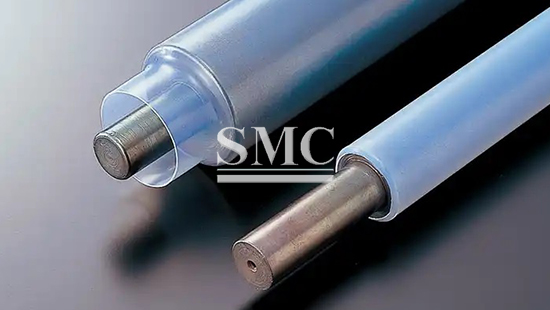

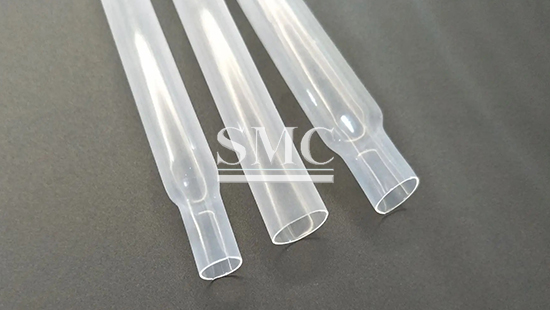

PTFE Shrink Tubing / Shrink Tube / PTFE Tube
Shrink Ratio: 4:1, 2:1, 1.7:1, 1.3:1
Material: PTFE
Normal size: Dia 0.5mm-35mm
Shanghai Metal Corporation is a trusted Crane Rail supplier in china, we have extensive inventory of Crane Rail, and other metals in various alloys and tempers.
PTFE heat-shrinkable tube is made of imported high-quality polytetrafluoroethylene (commonly known as plastic king) resin and processed by special methods. The product has the advantages of high temperature resistance, high pressure resistance, corrosion resistance, wear resistance, and good mechanical strength. Widely used in various fields such as machinery, electronic chemical industry, communication, etc.
If you want to know more about our PTFE shrink tubing, please feel free to contact us, we will reply you within 24 hours.
|
4:1 Shrink Ratio |
||||
|
Specification |
Before Shrinking |
After Shrinking |
||
|
Inner Dia(mm) |
Wall Thickness(mm) |
Inner Dia(mm) |
Wall Thickness(mm) |
|
|
Φ2.0 |
2.0+0.5/-0.2 |
0.10+/-0.05 |
≤0.50 |
0.25+/-0.05 |
|
Φ2.5 |
2.5+0.5/-0.2 |
0.10+/-0.05 |
≤0.62 |
0.25+/-0.05 |
|
Φ3.0 |
3.0+0.5/-0.2 |
0.10+/-0.05 |
≤0.75 |
0.25+/-0.05 |
|
Φ3.5 |
3.5+0.5/-0.2 |
0.10+/-0.05 |
≤0.87 |
0.30+/-0.05 |
|
Φ4.0 |
4.0+0.5/-0.2 |
0.10+/-0.05 |
≤1.00 |
0.30+/-0.05 |
|
Φ4.5 |
4.5+0.8/-0.2 |
0.10+/-0.05 |
≤1.12 |
0.30+/-0.05 |
|
Φ5.0 |
5.0+0.8/-0.2 |
0.10+/-0.05 |
≤1.25 |
0.30+/-0.05 |
|
Φ6.0 |
6.0+0.8/-0.2 |
0.10+/-0.05 |
≤1.50 |
0.30+/-0.05 |
|
Φ7.0 |
7.0+0.8/-0.2 |
0.10+/-0.05 |
≤1.75 |
0.30+/-0.05 |
|
Φ8.0 |
8.0+1.0/-0.2 |
0.10+/-0.05 |
≤2.00 |
0.30+/-0.05 |
|
Φ9.0 |
9.0+1.0/-0.2 |
0.10+/-0.05 |
≤2.25 |
0.30+/-0.05 |
|
Φ10.0 |
10+1.0/-0.5 |
0.10+/-0.05 |
≤2.5 |
0.30+/-0.05 |
|
Φ11.0 |
11+1.0/-0.5 |
0.10+/-0.05 |
≤2.75 |
0.30+/-0.05 |
|
Φ12.0 |
12+1.0/-0.5 |
0.10+/-0.05 |
≤3.00 |
0.30+/-0.05 |
|
Φ15.0 |
14.0-17.0 |
0.10+/-0.05 |
3.8+/-0.5 |
0.38+/-0.08 |
|
Φ19.0 |
18.0-21.0 |
0.10+/-0.05 |
4.8+/-0.5 |
0.38+/-0.08 |
|
Φ25.0 |
24.0-28.0 |
0.10+/-0.05 |
6.3+/-0.8 |
0.38+/-0.08 |
|
Φ35.0 |
33.0-39.0 |
0.13+/-0.08 |
9.0+/-1.0 |
0.38+/-0.08 |
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
