Thickness: 1-50mm

Density: 1.19-1.2g/cm3

Color: Customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading manufacturer and supplier of acrylic sheets, with a factory covers an area of 50000 square meters, the year productivity reaches 20000 tons. The company introduces the world’s leading level of casting acrylic automation production lines, and use 100% pure virgin raw material to ensure the best quality. The company has decades’ history engaging in the acrylic industry, and has a professional R&D team. Our factory production all conform to international standard ISO 9001, CE and SGS.

Shanghai Metal Corporation has a complete quality control system. In order to ensure zero defect and zero complaints, we monitor and control every link from raw materials to production, to the warehousing and shipment of finished products. The inspection includes the appearance data of the product, including the length, width, thickness, weight, flatness, hardness, surface and cross section. In addition, according to customer requirements and application conditions, we have well-equipped facilities to test the physical and chemical properties of the products, such as the impact strength, aging resistance, flame retardancy, etc.

If you want to know more about our products or acrylic sheet price, please feel free to contact us. We will reply you within 24 hours.

1. UV coated, can last 10 years

2. 100% virgin raw material

3. No smell when cut by laser or CNC machines

4. Easily bendable and formable

5. Best thickness tolerance

6. Dust-free workshops

7. High quality protective film, durable and easy to laminate and tear.

1. Signage

2. Advertising

3. Medical barrier

4. Sanitary ware

5. Architectural design

6. Furniture

7. Office stationery

8. Traffic Industry/span>

1.Thermoformed

2.Cut

3.Drilled

4.Bent

5.Machined

6.Engraved

7.Polished

8.Glued

Technical Information of Acrylic Sheet/ Plate:

Physical Property of Cast Acrylic Sheet
	Property	Unit	Value
Mechanical	Specific Gravity	/	1.19-1.2
	Roswell Hardness	kg/cm2	M-100
	Shear Strength	kg/cm2	630
	Flexural Strength	kg/cm2	1050
	Tensile Strength	kg/cm2	760
	Compressive Strength	kg/cm2	1260
Electrical	Didlectic Strength	Kv/mm	20
Electrical	Surface Resistivity	Ohm	＞10 16
Optical	Light Transmittance	%	93
Optical	Refractive Index
Thermal	Specific Heat	Cal/gr℃	0.35
	Coefficient of Thermal Cortductivily	Cal/xxee/cm/℃/cm
	Hot Forming Temp	℃	140-180
	Hot Defomation Temp	℃	100
	Thermal Expansion Coefficient	Cmfcm/V	6x10-5
Miscellaneous	water Absorption (24Hrs)	%	0.3
	Teste	%	none
	Ordor

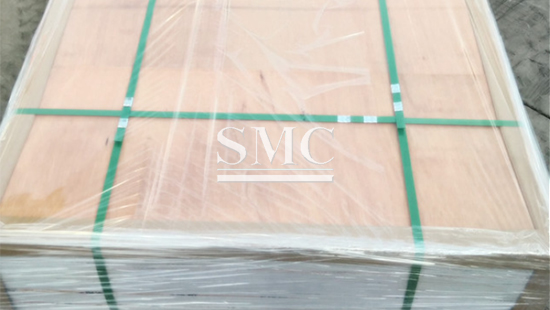

Packaging of Acrylic Sheet/ Plate:

1. Trimmed/ Untrimmed, with PVC edges.

2. Covered by PE film or craft paper with logo.

3. Packed in wooden case.
