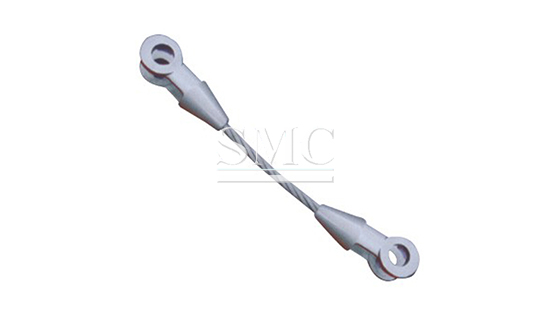

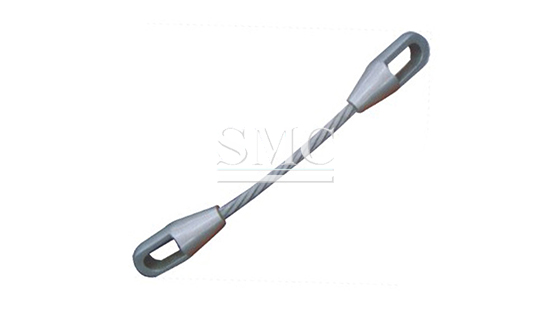

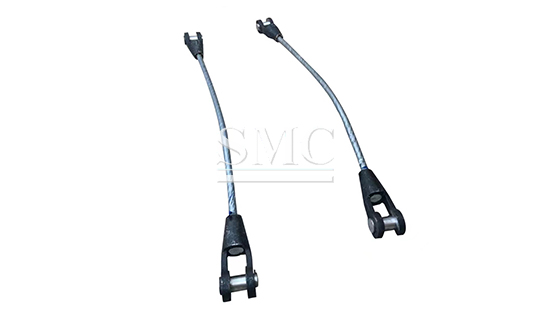

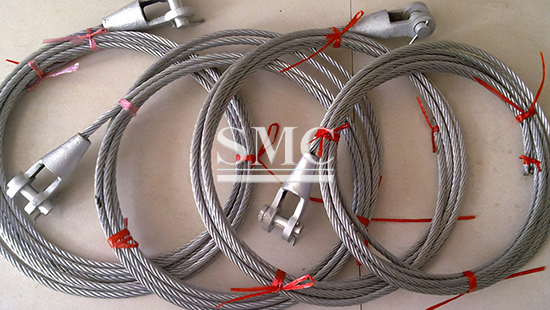

Wire Rope Sling with Close or Open Spelter Socket
Diameter: 6mm~60mm
Type: Close/open spelter socket wire rope sling
Material: Galvanized steel
Shanghai Metal Corporation is a professional manufacturer and supplier of Wire Rope Sling with Close or Open Spelter Socket with high quality and reasonable price.

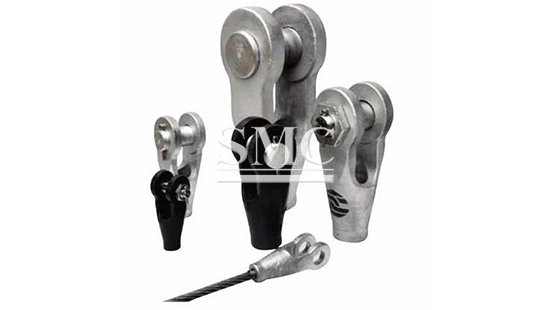

Steel wire rope casting rigging is a form of rigging that connects the steel wire rope to a special cable joint through the casting process. The supporting cable joints can be divided into two types: close type spelter socket wire rope sling and open type spelter socket wire rope sling . The characteristic of its rigging is simple structure and high binding strength, especially for on-site construction of certain large equipment that cannot be disassembled.
If you want to know more about Wire Rope Sling with Close or Open Spelter Socket price please feel free to contact us, we will reply you within 24 hours

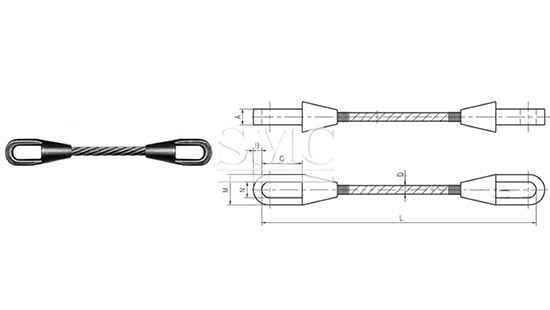

Technical Information of Wire Rope Sling with Close or Open Spelter Socket:
|
Sizes&Types |
Connector model |
Diameter(mm) |
Size(mm) |
||||
|
d |
A |
B |
C |
M |
N |
||
|
BJ06 |
1/4 |
φ6-φ7 |
14 |
14 |
57 |
40 |
22 |
|
BJ08 |
5/16-3/8 |
φ8-φ10 |
18 |
16 |
67 |
43 |
25 |
|
BJ11 |
7/16-1/2 |
φ11-φ13 |
22 |
18 |
75 |
51 |
30 |
|
BJ14 |
9/16-5/8 |
φ14-φ16 |
25 |
21 |
84 |
67 |
36 |
|
BJ18 |
3/4 |
φ18 |
32 |
27 |
103 |
76 |
42 |
|
BJ20 |
7/8 |
φ20-φ22 |
38 |
32 |
121 |
92 |
48 |
|
BJ24 |
1 |
φ24-φ26 |
45 |
35 |
137 |
105 |
58 |
|
BJ28 |
1 1/8 |
φ28 |
50 |
38 |
152 |
114 |
65 |
|
BJ32 |
1 1/4-1 3/8 |
φ32-φ36 |
55 |
41 |
168 |
127 |
71 |
|
BJ38 |
1 1/2 |
φ38 |
65 |
50 |
202 |
137 |
81 |
|
BJ40 |
1 5/8 |
φ40 |
70 |
54 |
219 |
146 |
83 |
|
BJ44 |
1 3/4-1 7/8 |
φ44-φ48 |
75 |
56 |
248 |
171 |
95 |
|
BJ52 |
2 1/8 |
φ52-φ54 |
83 |
62 |
279 |
194 |
111 |
|
BJ56 |
2 1/4-2 3/8 |
φ56-φ60 |
92 |
67 |
308 |
216 |
127 |
|
BJ64 |
2 1/2-2 5/8 |
φ64-φ66 |
102 |
79 |
349 |
241 |
140 |
|
BJ70 |
2 3/4-2 7/8 |
φ70-φ74 |
124 |
79 |
365 |
273 |
159 |
|
BJ76 |
3-3 1/8 |
φ76-φ80 |
133 |
83 |
381 |
292 |
171 |
|
BJ82 |
3 1/4-3 3/8 |
φ82-φ86 |
146 |
102 |
413 |
311 |
184 |
|
BJ88 |
3 1/2-3 5/8 |
φ88-φ92 |
159 |
102 |
432 |
330 |
197 |
|
BJ95 |
3 3/4-4 |
φ95-φ102 |
178 |
108 |
464 |
362 |
216 |
|
BJ110 |
4 1/4 |
φ110 |
200 |
123 |
535 |
404 |
244 |
|
BJ120 |
4 7/8 |
φ120 |
240 |
150 |
595 |
475 |
275 |
|

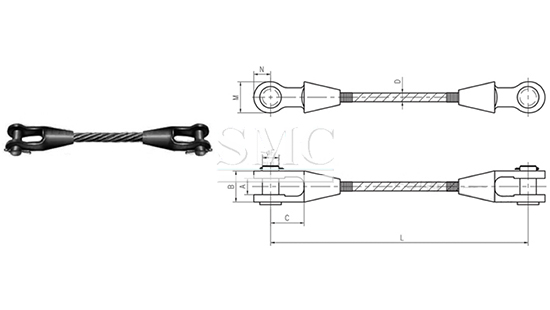

Sizes&Types |
Connector model |
Diameter(mm) |
Size(mm) |
|||||
|
d |
A |
B |
C |
φF |
M |
N |
||
|
KJ06 |
1/4 |
φ6-φ7 |
19 |
39 |
40 |
16.5 |
33 |
19 |
|
KJ08 |
5/16-3/8 |
φ8-φ10 |
21 |
45 |
44 |
20.5 |
38 |
22 |
|
KJ11 |
7/16-1/2 |
φ11-φ13 |
25 |
53 |
51 |
24.5 |
48 |
27 |
|
KJ14 |
9/16-5/8 |
φ14-φ16 |
32 |
60 |
64 |
29.5 |
57 |
33.5 |
|
KJ18 |
3/4 |
φ18 |
38 |
70 |
76 |
34.5 |
67 |
40 |
|
KJ20 |
7/8 |
φ20-φ22 |
44 |
84 |
89 |
40.5 |
80 |
45 |
|
KJ24 |
1 |
φ24-φ26 |
51 |
95 |
102 |
50 |
95 |
56 |
|
KJ28 |
1 1/8 |
φ28 |
57 |
107 |
117 |
56 |
105 |
62 |
|
KJ32 |
1 1/4-1 3/8 |
φ32-φ36 |
64 |
124 |
127 |
63 |
122 |
74 |
|
KJ38 |
1 1/2 |
φ38 |
76 |
136 |
152 |
69 |
137 |
80 |
|
KJ40 |
1 5/8 |
φ40 |
76 |
140 |
165 |
75 |
146 |
88 |
|
KJ44 |
1 3/4-1 7/8 |
φ44-φ48 |
89 |
169 |
178 |
88 |
165 |
102 |
|
KJ52 |
2 1/8 |
φ52-φ54 |
102 |
192 |
228 |
94 |
178 |
110 |
|
KJ56 |
2 1/4-2 3/8 |
φ56-φ60 |
114 |
224 |
254 |
106 |
197 |
120 |
|
KJ64 |
2 1/2-2 5/8 |
φ64-φ66 |
127 |
247 |
273 |
119 |
216 |
132 |
|
KJ70 |
2 3/4-2 7/8 |
φ70-φ74 |
133 |
273 |
279 |
125 |
229 |
138 |
|
KJ76 |
3-3 1/8 |
φ76-φ80 |
146 |
296 |
286 |
131 |
241 |
150 |
|
KJ82 |
3 1/4-3 3/8 |
φ82-φ86 |
159 |
319 |
298 |
138 |
254 |
165 |
|
KJ88 |
3 1/2-3 5/8 |
φ88-φ92 |
172 |
332 |
318 |
150 |
273 |
175 |
|
KJ95 |
3 3/4-4 |
φ95-φ102 |
191 |
371 |
343 |
176 |
318 |
210 |
|
KJ110 |
4 1/4 |
φ110 |
216 |
416 |
390 |
190 |
350 |
235 |
|
KJ120 |
4 7/8 |
φ120 |
267 |
467 |
430 |
200 |
400 |
270 |

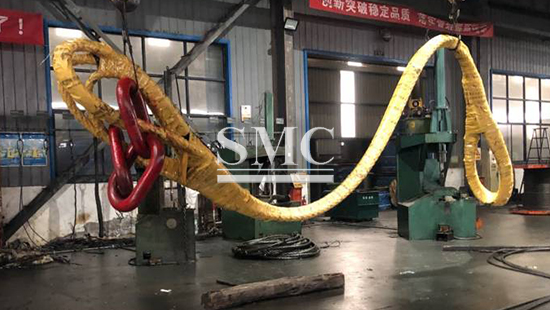

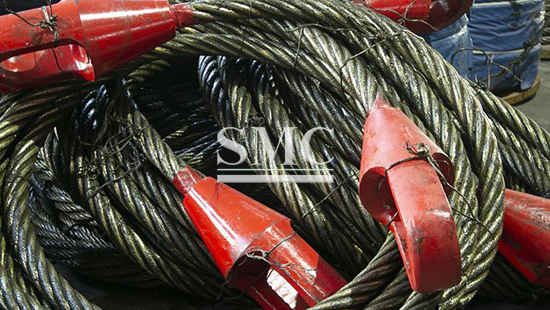

Packaging of Wire Rope Sling with Close or Open Spelter Socket:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Notes:
1. Ensure that the load level of the rigging meets actual needs and avoid overloading.
2. Before using the rigging, it is necessary to inspect it to ensure that there is no damage, corrosion, wear, deformation, etc.
3. Choose the correct connecting components and locking devices to ensure they are secure and reliable.
4. Keep the rigging dry and clean, and store it properly to prevent sunlight, rain, and chemical corrosion.
5. When using the rigging, it should be stable and avoid shaking and swinging.
