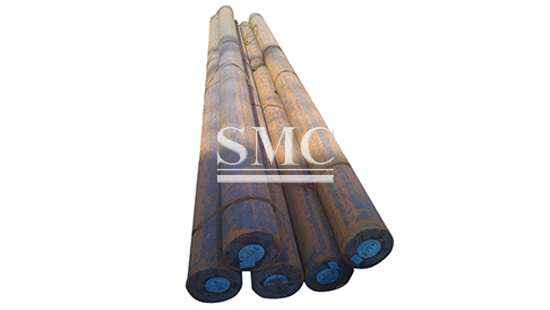

45CrNiMo1V/ DA6C High Strength Alloy Steel Bar for Rocket Engine Shell
Diameter: 10mm - 300mm
Length: 1000mm - 12000mm
Grade: 45CrNiMo1V (DA6C)
Shanghai Metal Corporation is experienced manufacturer of high strength alloy steel rod for rocket engine shell in China since 1980s.
The 45CrNiMo1V high strength alloy steel rod is a low alloy ultra-high strength steel with high harden ability, high strength, high toughness, and good harden ability. After quenching and tempering, the steel can achieve high strength and certain toughness, and can be processed into shape. 45CrNiMo1V high strength alloy steel rod is commonly used to manufacture high loads, requiring high strength, high toughness, larger cross-sectional dimensions, and important quenched and tempered parts, such as the transmission eccentric shaft of horizontal forging machines and forging press crankshafts.
If you want to know more about 45CrNiMo1V High Strength Alloy Steel Bar for Rocket Engine Shell price please feel free to contact us, we will reply you within 24 hours
Technical Information of 45CrNiMo1V High strength alloy steel bar for rocket engine shell:
|
45CrNiMo1V chemical composition |
|||||||||
|
Component |
%C |
%Si |
%Mn |
%P |
%S |
%Cr |
%Ni |
%Cu |
%Mo |
|
Min. |
0.44 |
0.15 |
0.6 |
- |
- |
0.9 |
0.4 |
- |
0.9 |
|
Max. |
0.49 |
0.35 |
0.9 |
0.015 |
0.01 |
1.2 |
0.7 |
0.2 |
1.1 |
|
Mechanical property |
|||||||
|
Grade |
Code |
Recommended heat treatment |
Yield strength |
Tensile strength |
Elongation(%) |
Reduction of area (%) |
Impact absorbing energy(KU2) |
|
45CrNiMo1V |
D6AC |
Normalized at 890 ℃~920 ℃ , 1 hour air-cooled |
≥1420MPA |
≥1520MPA |
≥9 |
≥35 |
≥25 |

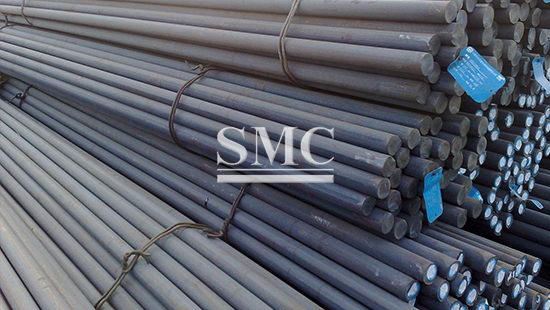

Packaging of 45CrNiMo1V High strength alloy steel bar for rocket engine shell:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization

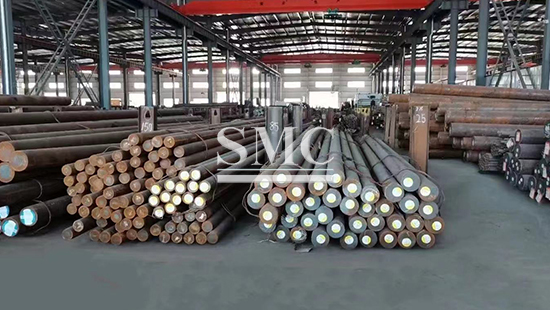

Notes:
1. Avoiding Impact During use, it is important to avoid the impact of round steel on each other, as this can easily cause damage to the quality of the round steel and lead to quality issues such as cracks.
2. Fire prevention: Round steel usually requires heating, so fire prevention is necessary. During the heating process, it is necessary to place the round steel in a non flammable area to avoid fire.
3. Avoid bending. If it is necessary to bend round steel, professional bending equipment and tools should be used. Temperature control is required for the round steel during bending to avoid damage to its quality.
