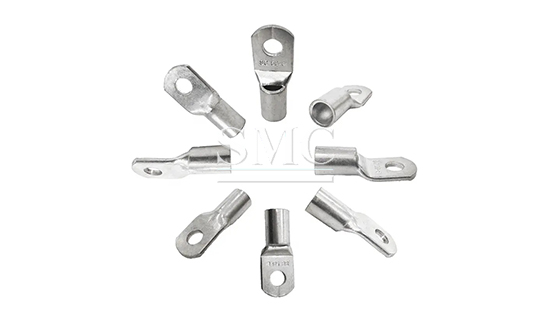

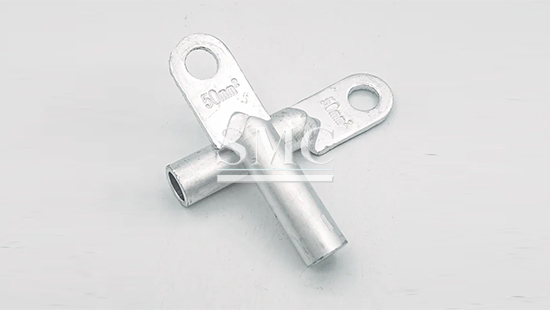

Aluminum Cable Lug/ DL Aluminum Terminal
Model Number: DL
Size: 10-800mm2
Type: Oil-plugging, dual hole type
Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Aluminum Cable lug, Terminals, Connectors and Wiring accessories in China.
The excellence of every detail is the root of excellent quality. SMC has strong technical force, the advanced technique of production and complete testing equipment. SMC has maintained “Excellent quality, Exceeding customer needs”business purposes. We has established quality system according to the product design, manufacturing and service.
If you want to know more about our Terminals, Connectors and Wiring accessories products or Aluminum cable lug, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Aluminum Cable Lug:
|

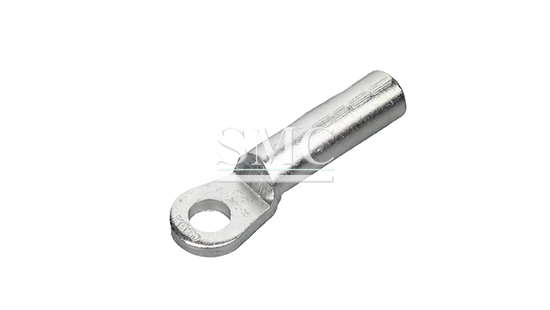

Aluminum Cable Lug(Oil-plugging) |
|||||||
|
Model |
Dimensions(mm) |
||||||
|
φ |
D |
d |
L |
L1 |
W |
/ |
|
|
DL-10 |
8.5 |
10 |
5.2 |
65 |
30 |
16 |
/ |
|
DL-16 |
8.5 |
10 |
6.1 |
70 |
31 |
16 |
/ |
|
DL-25 |
8.5 |
12 |
7.1 |
75 |
35 |
18 |
/ |
|
DL-35 |
10.5 |
14 |
8.5 |
85 |
38 |
20.5 |
/ |
|
DL-50 |
10.5 |
16 |
9.8 |
90 |
42 |
23 |
/ |
|
DL-70 |
12.5 |
18 |
11.5 |
102 |
47 |
26 |
/ |
|
DL-95 |
12.5 |
21 |
13.5 |
112 |
51 |
28 |
/ |
|
DL-120 |
14.5 |
23 |
15 |
120 |
53 |
30 |
/ |
|
DL-150 |
14.5 |
25 |
17 |
126 |
56 |
34 |
/ |
|
DL-185 |
16.5 |
27 |
18.6 |
133 |
58 |
37 |
/ |
|
DL-240 |
16.5 |
30 |
21.5 |
140 |
60 |
40 |
/ |
|
DL-300 |
18 |
34 |
24 |
165 |
66 |
50 |
/ |
|
DL-400 |
21 |
38 |
27 |
178 |
76 |
50 |
/ |
|
DL-500 |
21 |
45 |
30 |
200 |
85 |
60 |
/ |
|
DL-630 |
21 |
50 |
34.2 |
225 |
85 |
80 |
/ |
|

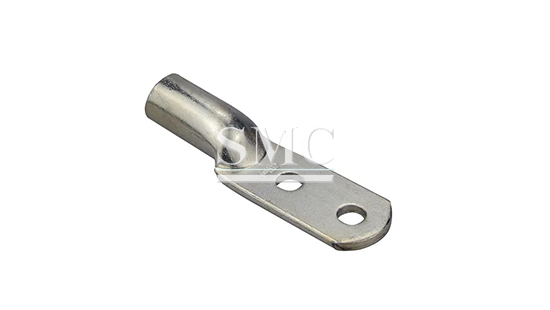

Aluminum Cable Lug(dual hole type) |
|||||||||
|
Model |
Dimensions(mm) |
||||||||
|
φ |
D |
d |
L |
L1 |
L2 |
L3 |
B |
A |
|
|
DL-16S |
10.5 |
10 |
5.5 |
100 |
32 |
45 |
20 |
20 |
2.8 |
|
DL-25S |
10.5 |
12 |
7 |
103 |
34 |
45 |
25 |
20 |
3.2 |
|
DL-35S |
10.5 |
14 |
8.5 |
107 |
40 |
50 |
25 |
20 |
3.4 |
|
DL-50S |
10.5 |
16 |
9.5 |
115 |
42 |
50 |
25 |
23 |
4 |
|
DL-70S |
12.5 |
18 |
12 |
125 |
47 |
62 |
25 |
26 |
4.2 |
|
DL-95S |
12.5 |
21 |
13 |
135 |
50 |
62 |
25 |
28 |
4.5 |
|
DL-120S |
13 |
23 |
15 |
148 |
53 |
72 |
30 |
30 |
5 |
|
DL-150S |
13 |
25 |
16 |
152 |
55 |
72 |
30 |
34 |
5.4 |
|
DL-185S |
13 |
27 |
18 |
166 |
58 |
60 |
35 |
37 |
6.2 |
|
DL-240S |
13 |
30 |
20 |
168 |
60 |
80 |
35 |
40 |
6.8 |
|
DL-300S |
16.5 |
34 |
23 |
185 |
65 |
90 |
40 |
46 |
8 |
|
DL-400S |
16.5 |
38 |
26 |
194 |
70 |
90 |
40 |
50 |
8.5 |

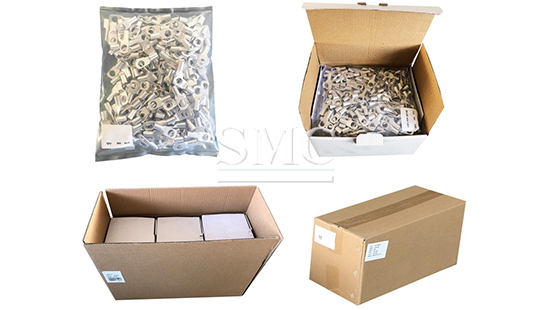

Packaging of Aluminum Cable Lug:
1. Carton Package ,100 pcs/ctn
2. Professional export package
