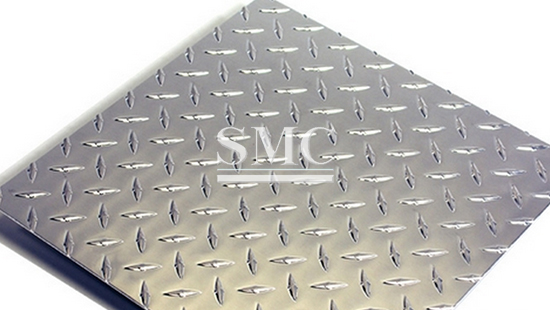

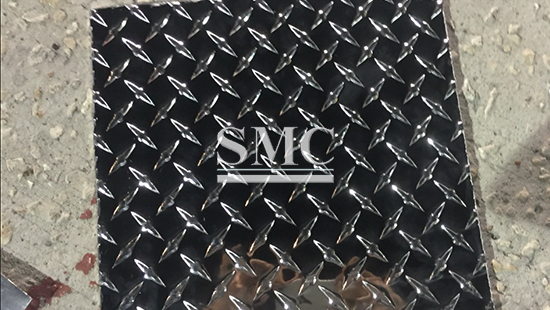

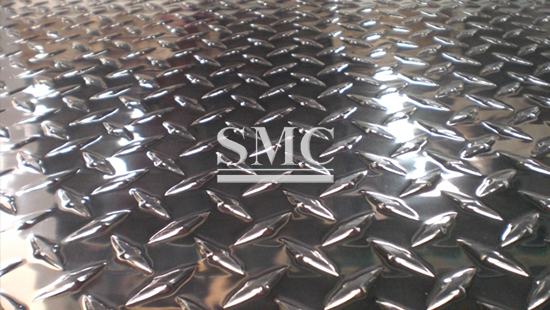

Aluminum Diamond Plate

    Grade: 1100, 3003, 5052, 5754, etc.


    Thickness: 1mm - 6mm


    Width: 2200mm max.

Aluminum Diamond Plate is made from painted aluminum sheet and embossed with diamond plate tread pattern which are widely used as antiskid plates in ship and auto building in the construction and transportation industries. The advantages of using aluminum diamond plates, retains high value after being replaced.



Features of Aluminum Diamond Plate:

1) Light in weight
2) Convenient assembling
3) Disassembling
4) Antiskid


Pattern Aluminum Diamond Plate:

1) big 5 bar
2) small 5 bar
3) diamond
4) 3 bar
5) pointer, etc.

Specifications of Aluminum Diamond Plate:

1) Grade: 1060, 1100, 3003, 3105, 5052, 5083, 5754, 6061, etc.

2) Thickness: 1mm - 6mm

3) Width: 2200mm max.

4) Length: 12000mm max.

5) Temper: H14/H154  H24/H254  H26/H274 H18/H194 H32/H334, etc.

6) Tread height: 1.0mm - 1.5mm

7) Tread length: 35mm - 50mm

8) Accept customization


Packaging of Aluminum Diamond Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Aluminum Diamond Plate:

1) Ship deck

2) Autos

3) Workshop floors

4) Building floors and steps

5) Antiskid floor of bus

6) Elevator

7) Treadboard

8) Stair tread

9) Vehicle step

10) Amusement park

11) Restaurant service area

12) Table top

13) Wall accent

14) Hot rod

15) Ceiling fan, etc.
