Hastelloy Series

Hastelloy N

    Wire: 0.04-10mm

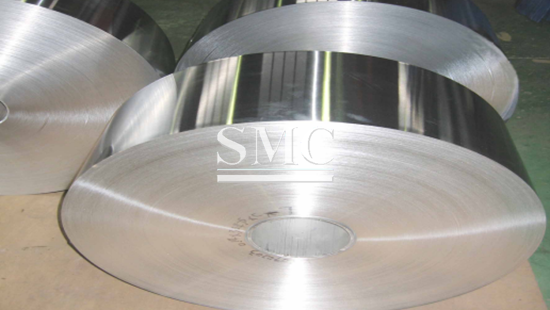

    Strip: 0.05-15mm*3-600mm

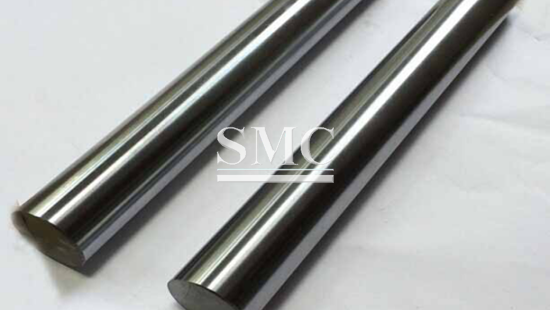

    Bar: 3mm~800mm;

Hastelloy N Alloy Steel:


Equivalent designations: UNS N10003
Specification:
Wire: 0.04-10mm
Strip: 0.05-15mm*3-600mm
Bar: 3mm~800mm;

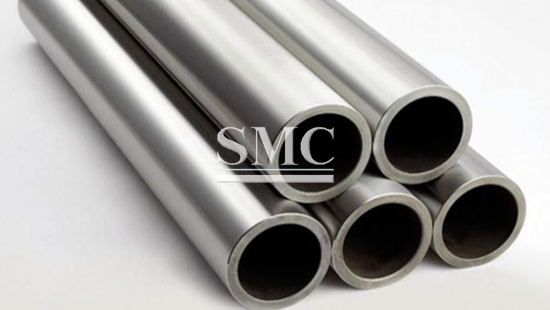

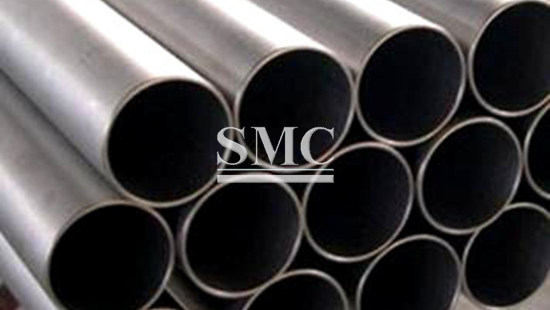

Pipe: OD 1 - 1000 mm; Thickness 0.1 - 100 mm
Sheet: Thickness 0.15-180mm; Width 8-3000mm; Length 500mm-11000mm
Surface Treatment: Black, Bright polished, Rough Turned, No 4 Finished, Matt Finished, bA Finished, or other Finished.

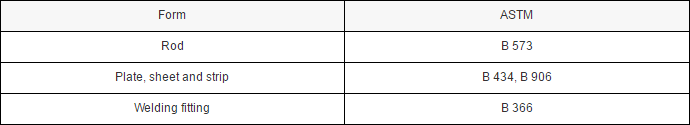

Product list and standard:

Chemical element for automotive fuse:



Physical properties:




Processing method:


Raw material→ Smelting→ Drawing→ Rolling→ Annealing→ Finished product→ Detection→ Packing→ Shipping

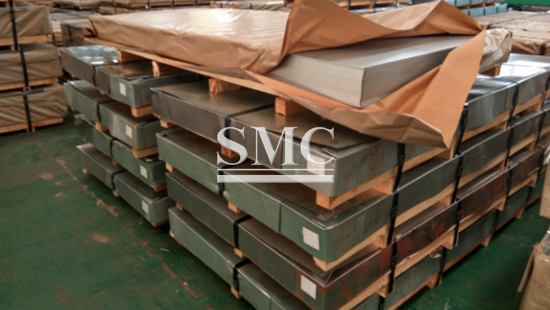

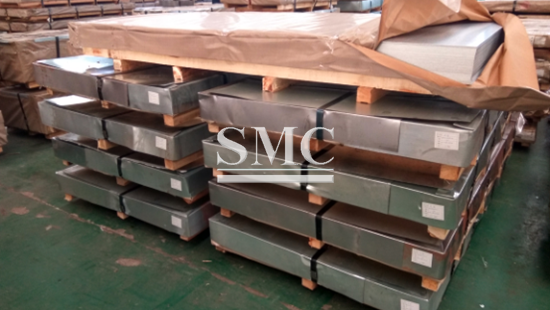

Packing:


Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation.

In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization


Applications:


Containers for molten fluoride salts

Gas turbines

Petrochemical industry

Industrial furnaces

Heat treating equipment

Nuclear engineering

Jet engine combustion chambers

Aircraft cabin heaters

Turbine exhaust components



Advantages and Features:

HASTELLOY N alloy (UNS N10003) is a nickel-base alloy that was invented at Oak Ridge National Laboratories as a container material for molten fluoride salts. It has good oxidation resistance to hot fluoride salts in the temperature range of 1300 to 1600°F (704 to 871°C).


In tests of over two years duration, corrosion attack on HASTELLOY N alloy in molten fluoride salts at temperatures up to 1300°F (704°C), was less than one mil per year. It is expected that alloy N will be most useful in environments involving fluorides at high temperatures; however, the alloy compares favorably with other HASTELLOY alloys in various corrosive media, as shown in the table of penetration rates. Corrosion test samples of the alloy are available from any of the locations listed on the back cover of this technical information. It is especially suggested that the alloy be tested in molten halides of zirconium, beryllium, lithium, sodium, potassium, thorium or uranium.


HASTELLOY N alloy has good oxidation resistance in air. It shows promise for continuous operations at temperatures up to 1800°F (982°C). Intermittent use at temperatures up to 1900°F (1038°C) may also be possible. No discernible oxidation could be measured for the alloy at temperatures up to 1200°F (649°C).


Metallographic examinations have shown that the elements in alloy N remain in solid solution in the 1100 to 1600°F (593 to 871°C) range. Tensile tests have indicated no tendency toward embrittlement for prolonged periods at 1500°F (816°C). Alloy N has good weldability and can be readily forged. The hot working range is between 1600 and 2150°F (871 to 1177°C). It has been successfully extruded and further processed into high-quality seamless or manufactured as welded and drawn tubing.


Solution heat-treatment is recommended after hot or cold working of HASTELLOY N alloy parts. For sheet and plate, this is accomplished by soaking at 2150°F (1177°C) [sections up to 1/4 inch thick] and then cooling rapidly in air, or at 2165°F (1185°C) [sections 1/4 inch and thicker] followed by waterquenching.


HASTELLOY N alloy can be supplied, to order, in the forms of sheet, plate, and bar



HASTELLOY N alloy sheet, plate, bar, rod, and welded and seamless wrought pipe and tubing have been approved for use in the construction of unfired pressure vessels in accordance with the requirements of the ASME Boiler and Pressure Vessel Code Section VIII under Case 1315 (Special Ruling). Alloy N is approved for use at temperatures up to 1300°F (704°C).
