Copper & Brass Fitting

HVAC V-Line Thermometer

      Case: Aluminum, Anodized Gold

      Stem: Brass / Stainless Steel

      Connection: 1/2'' BSP/NPT

Shanghai Metal Corporation is a leading supplier and manufacturer of HVAC V-line thermometer.

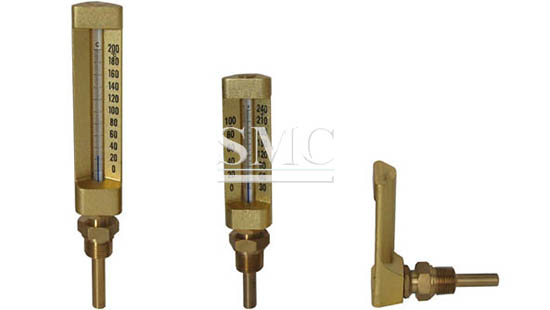

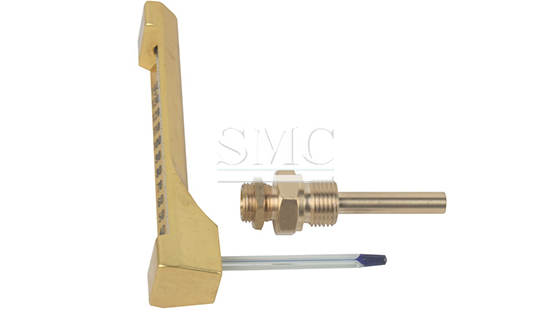

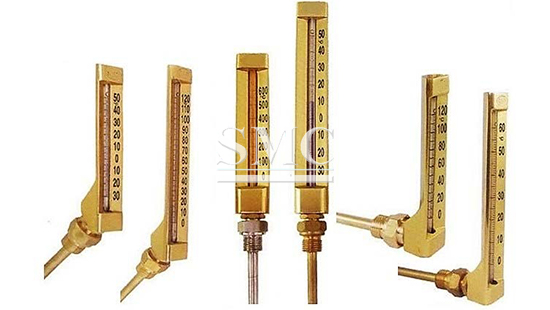

V-line thermometers are primarily used in industrial applications such as Marine and Heating markets. The durability and vibration-resistance of the product lends itself to these more robust end uses. We offer a broad selection of temperature ranges in both straight and 90° angled cases in 110mm, 150mm and 200mm lengths. Case materials are Polypropylene (up to 120°C) and Aluminum for higher ranges. Lens glass offers a clear view of the scale, in both Blue Spirit (up to 300°C) and Mercury fillings. Pockets are available in Brass and Stainless Steel, with standard connections as 1/2” BSP, with other threads available on request. The straight cased V-Lines are fitted with screw-in pockets as standard. Angled V-Lines are supplied with push-on pockets as standard and tightened with grub screws.

If you want to know more about our HVAC V-line thermometer price please feel free to contact us, we will reply you within 24 hours.

  • 1. Dial: 4.5" (110mm), 6" (150mm), 8" (200mm)

    2. Case:Aluminum, anodized gold

    3. Stem: brass/ stainless steel

    4. Connection: 1/2’’ BSP/NPT

  • 5. Liquid Filling: Organic Liquid (Red / Blue)

    6. Range:-40-110F/C, 20/180F/C, 30-240F/C, 30-300F/C, 50-400F

    7. Accuracy:  ±2%

Order Codes and Types:
