Monel Series

Monel 400

    Equivalent Designations: Monel 400, UNS N04400, DIN W. Nr. 2.4360, 2.4361



    Model Number: Monel 400

Equivalent designations: Monel 400, UNS N04400, DIN W. Nr. 2.4360, 2.4361
Place of Origin: Shanghai, China (Mainland)
Application: Chemical Industry, water tanks,  engineering equipment

Product list:

Specification:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm

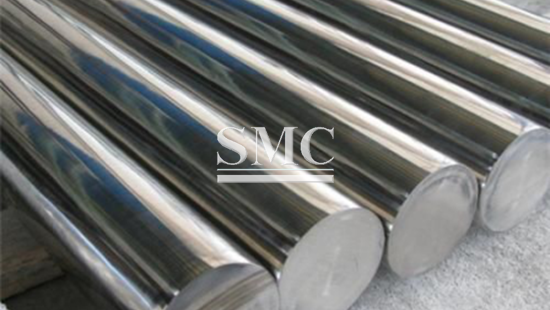

Bar: φ4-50mm; Length 2000-5000mm

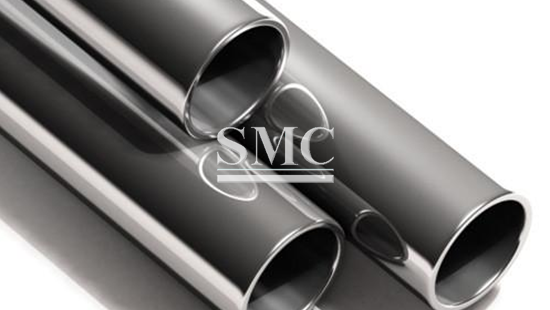

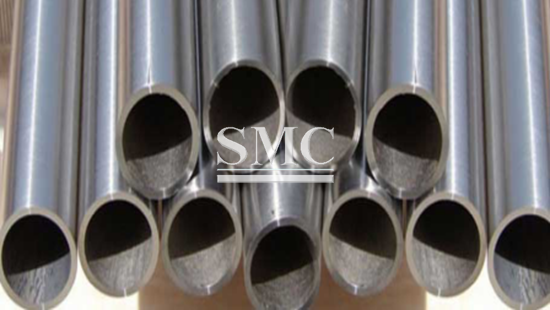

Pipe: φ6-273mm; δ1-30mm; Length 1000-8000mm

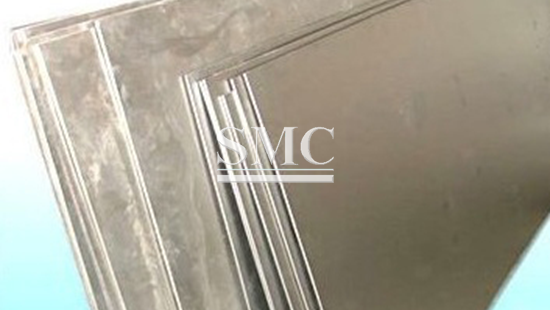

Sheet: δ 0.8-36mm; Width 650-2000mm; Length 800-4500mm
Model Number: Monel 400
Brand Name: SMC
Shape: Forging

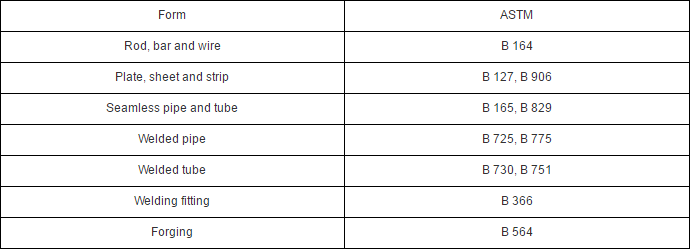

Standard: ASTM ASME
Certification: ISO 9001:2008
Color: Nickel Nature

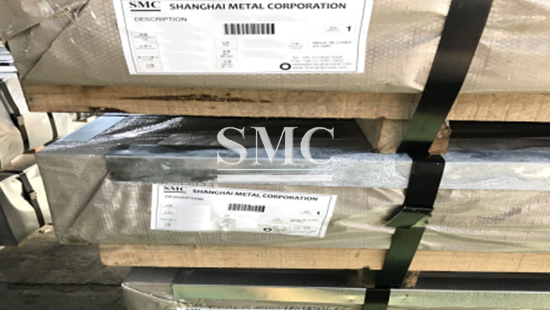

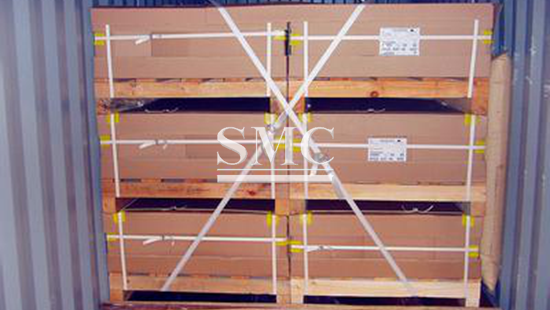

Packing: Common sea freight wooden case package/ Also can be customized
Payment: L/C,T/T

Delivery: Usually sample lead time is 7 days after payment has been confirmed.


Monel 400 has excellent resistance to corrosion by many reducing media such as sulfuric and hydrochloric acids. It is generally more resistant to corrosion by oxidizing media than higher copper alloys. Monel 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling point, of all engineering alloys. Monel 400 is notable for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It is work hardenable.

Chemical composition

Physical properties

Character

Resistant to seawater and steam at high temperatures.

Excellent resistance to rapidly flowing brackish water or seawater.

Excellent resistance to stress corrosion cracking in most freshwaters.

Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated.

Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids.

Excellent resistance to neutral and alkaline salt.

Resistance to chloride induced stress corrosion cracking.

Good mechanical properties from sub-zero temperatures up to 1020° F.

High resistance to alkalis.

Application

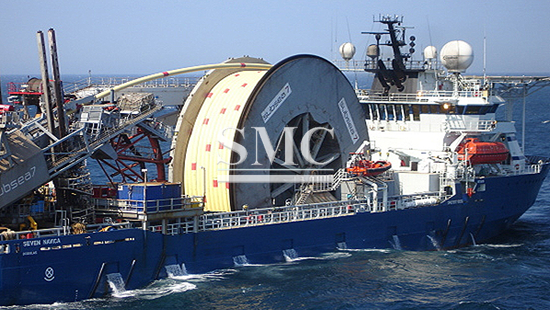

Marine engineering.

Chemical and hydrocarbon processing equipment.

Gasoline and freshwater tanks.

Crude petroleum stills.

De-aerating heaters.

Boiler feed water heaters and other heat exchangers.

Valves, pumps, shafts, fittings, and fasteners.

Industrial heat exchangers.

Chlorinated solvents.

Crude oil distillation towers.
