Standard: GB/T 8890, ASTM B111, BS2871, JIS H3300, DIN1785



    Diameter: 5mm - 80mm



    Wall thickness: 0.5mm - 15mm



    Length: 0.5m - 25m

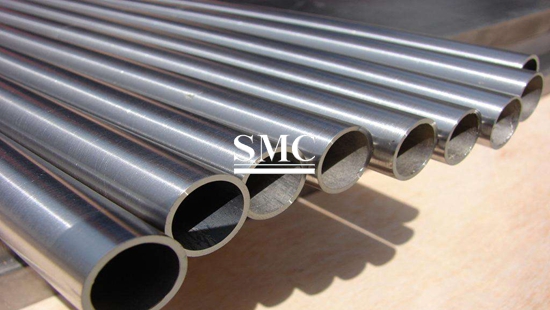

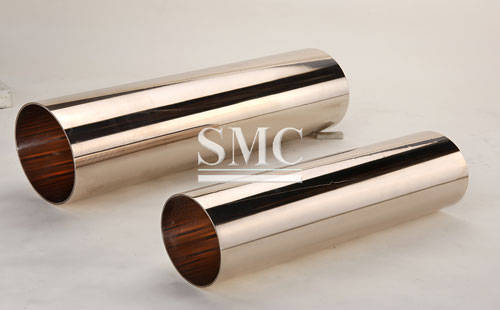

Specifications of Copper Nickel Tube:
1) Grade:

    C70660, C71500, C71640, C70400

    CuNi10Fe1Mn, CuNi30Mn1Fe, CuNi30Fe2Mn2
    Monel: Monel 300, Monel 400, Monel R405, Monel K500
    Inconel: Inconel 600, Inconel 625, Inconel 690, Inconel 718 , Inconel 750
    Incoloy: Incoloy 800, Incoloy 800H
2) Diameter: 5mm - 80mm
3) Wall thickness: 0.5mm - 15mm
4) Length: 0.5m - 25m
5) Temper: O61, H55, HR50

Monel 400
1) Seamless water and steam pipe in factory
2) Exchanger and evaporator for sea
3) Crude distillation
4) Manufacture of pumps and valves used by the production of hydrochloric acid equipment


Monel K500
1) Turbine blades and gas turbine blades on the manufacture of aircraft engine,
     operating temperature below 750 ℃
2) Fasteners, springs used in the manufacture of ship
3) Pumps, valves parts used in Chemical equipment

4) Squeegee blade on the paper making equipment





Features of Copper Nickel Tube:
1) High toughness
2) High strength
3) High stability
4) Excellent elasticity with fine silver gloss
5) Good fatigue
6) Rust and corrosion resistance properties
7) Good deep-drawing performance

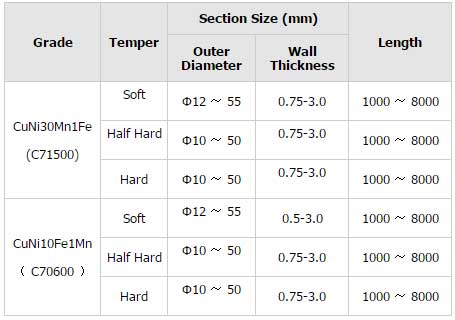

More Detailed Imformation of Copper Nickel Tube as the Following Table:

Shanghai Metal Corporation also provides Copper Nickel Tube and Rods which are made from special Monel Alloy.

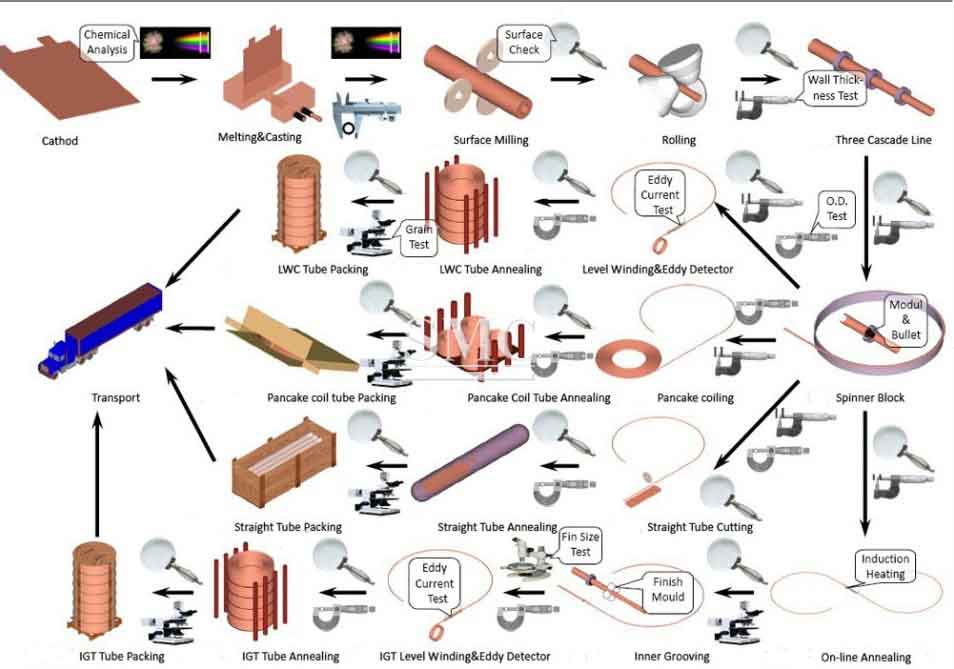

Manufacturing of Copper Nickel Tube

Packaging of Copper Nickel Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Copper Nickel Tube:

1) Copper Nickel Tube for Shielding material for communication electronics

2) Copper Nickel Tube for Antenna material

3) Copper Nickel Tube for SEMI-shielding material

4) Copper Nickel Tube for Spring contact

5) Copper Nickel Tube for Flexible terminal

6) Copper Nickel Tube for Environmentally-friendly plating-free electronic parts and components

7) Copper Nickel Tube for Quartz oscillator

8) Copper Nickel Tube for High-level material and electric material.

9) Copper Nickel Tube for Aerospace industry

10) Copper Nickel Tube for Chemical equipment
