Prepainted Galvanized & Galvalume Steel(PPGI, PPGL)

Pre-Painted Embossed Steel Coil

Standard: ASTM/ JIS/ GBT/ EN etc

Thickness: 0.25mm ~ 1.25mm

Width: 700mm ~ 1250mm

Product Detail | Technical Information | Packaging

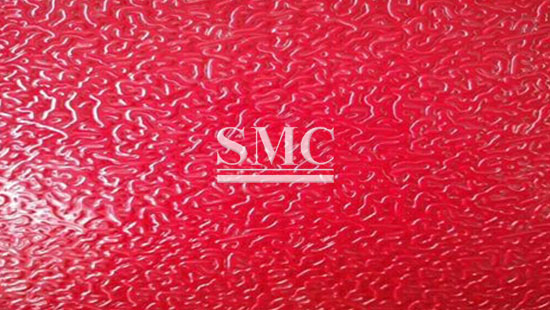

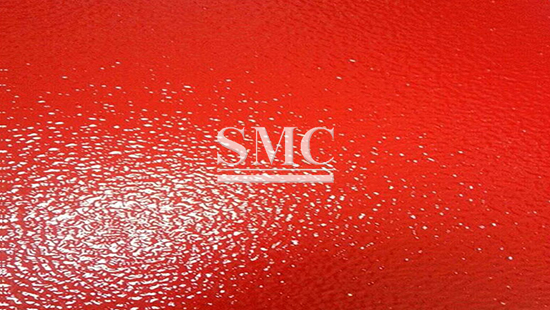

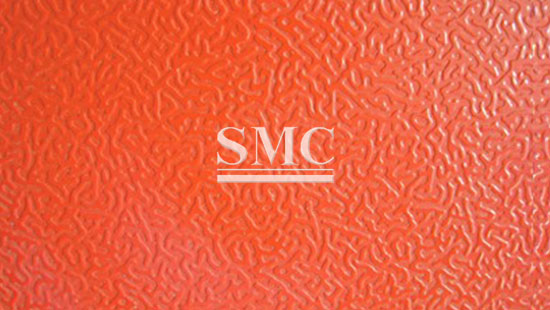

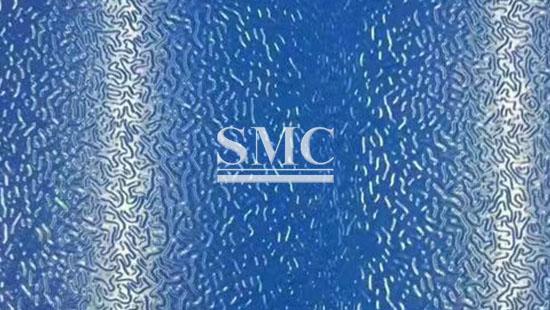

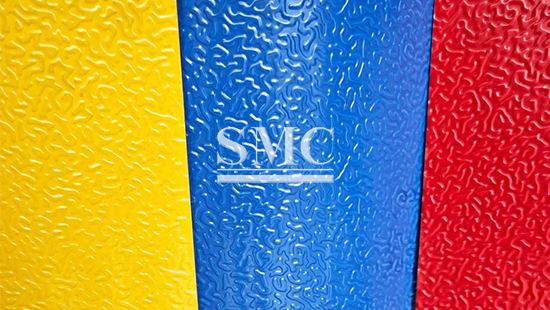

Product Detail

Shanghai Metal Corporation is a professional manufacturer of Pre-Painted Embossed Steel Coil.

It adopts PVC plastic respectively on the substrates of hot-dip galvanized steel sheets, 5% Al-Zn alloy coated steel sheet, and 55% Al-Zn alloy coated steel sheets. The PVC film undergoes embossing, creating the film with great touch and beautiful textures. The product possesses the properties of beauty, superb corrosion resistance and formability.

With over 30 year’s production experience, SMC has accumulated the advantage and techniques with high quality and reasonable price. If you want to know more about Pre-Painted Embossed Steel Coil, please feel free to contact us, we will reply you within 24 hours.

1. Steel Grade: SGCC, DX51D, S250GD, S550GD etc

2. Top coat: PVC PLASTISOL 150-250 μm or as per client’s needs

3. Back Primer: PU or Epoxy 2 μm

4. Back Coat: PVC PLASTISOL 100-250 μm or Epoxy 7 μm

5. Color: Any color as per client’s needs

6. Coil weight: as per client’s needs

Substrate

1. ColorEmboss EV-200 uses hot-dip galvanized steel sheets as its substrate. According to ASTM A 653M, coating mass is Z275 (total both sides, 275g/m2 min.)

2. ColorEmboss EV-200F uses 5% AI-Zn alloy coated steel sheets as its substrate. According to ASTM A 875M, coating mass is ZGF275 (total both sides, 275a/m2 min.)

3. ColorEmboss EV-200L uses 55% A-Zn alloy coated steel sheets as its substrate. According to ASTM A 792M, coating mass is AZM150 (total both sides, 150g/m2 min.)

Standard thickness of substrate is 0.576mm. Other thickness is also available subject to customers’ needs.

SMC uses proper pre-treatment with excellent corrosion resistance performance to form a conversion film on steel surface.

Due to its beautiful appearance, the product is suitable to be used for roofing and siding in industrial or residential districts, especially in coast land with severe corrosion, chemical industrial district or some environments that require high corrosion resistance.

1. Interior decoration( such as ceiling, partitions, fireproof boards,etc.)

2. Cases of electrical appliances(such as refrigerators, washing machines, vending machines, computers, and their peripherals, walk-in coolers, refrigerated vehicles, etc.)

3. Others

Technical Information of Pre-Painted Embossed Steel Coil:

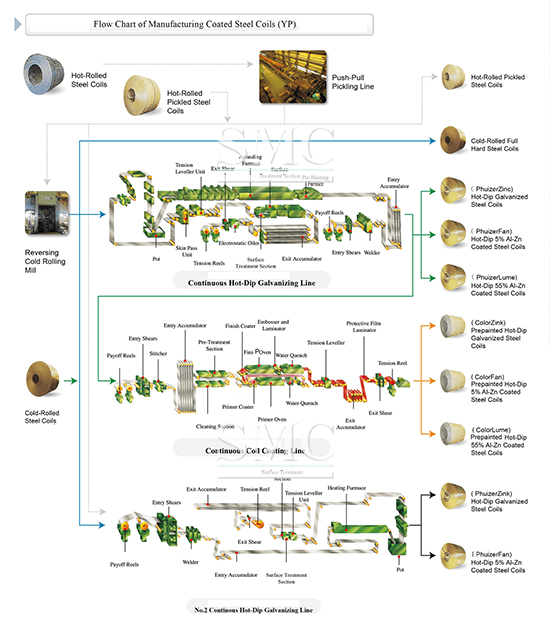

Process Flow Diagram of PPGI:

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel

Product	Grade	Thickness (mm)		Width（mm)		Paint Type
Product	Grade	From	To	From	To	PVC
PVC Embossing	Commercial Steel	0.25	1.25	700	1250
PVC Embossing	Structural Steel	0.30	1.25	700	1250

Product Type	Coating Type	Product Spec	Coating Thickness	Surface Treeatment
Pre-painted embossed steel coil (ColorLume)	PVC PLASTISOL	JIS K6744(2007) ASTM A755M(2016) EN 10169 A1(2010)	Primer: Epoxy Topcoat: PVC PLASTISOL 150-250 μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100-250 μm or Epoxy 7 μm	PVC embossed Leather Lichee

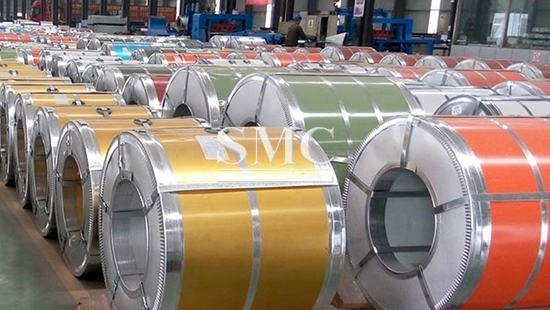

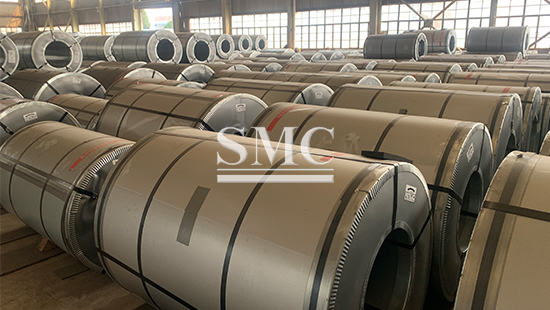

Packaging of Pre-Painted Embossed Steel Coil:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
