Diameter: 6mm~60mm

Structure: 6*19+FC/IWRC, 6*37+FC/IWRC, 8*61+FC/IWRC

Material: Galvanized steel, SS304, SS316

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is experienced manufacturer of single leg steel wire rope sling in China since 1980s.

Single leg wire rope sling is a kind of rope that is processed using steel wire rope as raw material and mainly used for lifting, traction, tension, and load-bearing. For single leg wire rope sling, this rigging can be used as a single leg binding rigging, when using a single leg binding rigging, only the hook needs to be hooked into the chain, and the rated load will be reduced by 20%. Therefore, the lifting point must be vertically above the center of gravity of the lifted object for single leg lifting.

If you want to know more about pressed steel wire rope sling price, please feel free to contact us, we will reply you within 24 hours.

Diameter: 6mm~60mm

Structure: 6*19+FC/IWRC, 6*37+FC/IWRC, 8*61+FC/IWRC

Material: Galvanized steel, SS304

Core: FC, IWRC

Tensile strength: 1670Mpa, 1770Mpa,1960Mpa, 2160Mpa

Standard: GB/T16762-2020

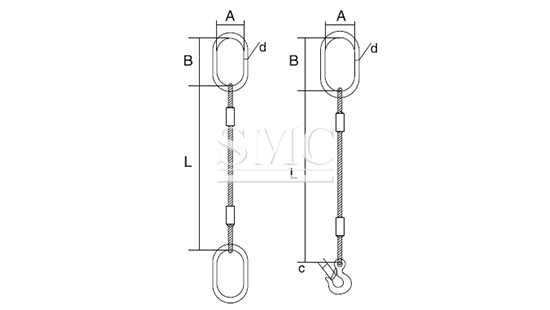

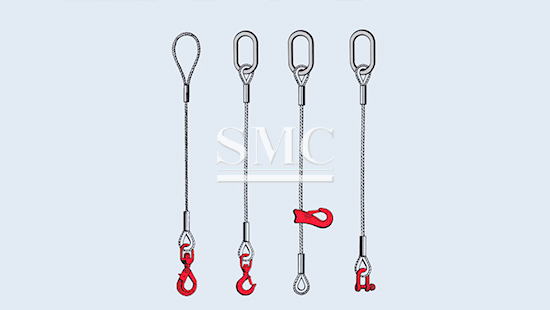

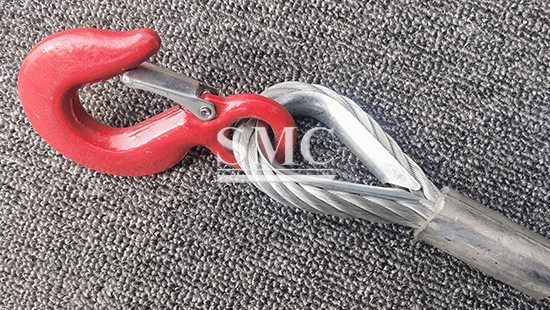

1. Single leg wire rope sling one side is lifting ring another side is hook.

2. Single leg wire rope sling both ends of the steel wire rope are lifting ring.

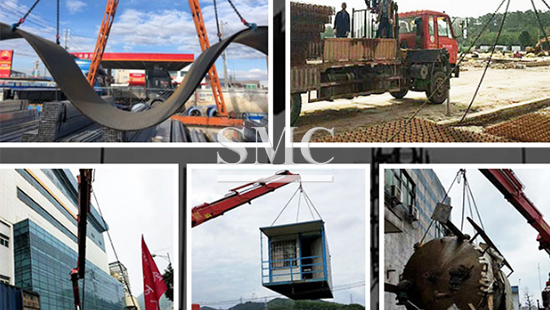

1. Chemical industry

2. Transportation

3. Construction & steel mill

4. Offshore & seaport

5. Mineral & machinery

Technical Information of single leg steel wire rope sling:

Sizes&Types	Diameter	Breaking load	Length	Main lifting ring WLL	Main hoist ring size	Hook WLL
Sizes&Types	mm	Ton	meter	Ton	AxBxd(mm)	Ton
WSSH06	6	0.35	0.5~10	2.8	10019016	1.12
WSSH08	8	0.61	0.5~10	2.8	10019016	1.12
WSSH09	9	0.78	0.5~10	2.8	10019016	1.12
WSSH10	10	0.96	1~10	2.8	10019016	1.12
WSSH11	11	1.16	1~10	2.8	10019016	2
WSSH12	12	1.38	1~10	2.8	10019016	2
WSSH13	13	1.62	1~10	2.8	10019016	2
WSSH14	14	1.87	1~10	2.8	10019016	2
WSSH16	16	2.46	1~10	2.8	10019016	3.15
WSSH18	18	3.1	1~10	6.4	11021022	3.15
WSSH20	20	3.84	1~10	6.4	11021022	5.3
WSSH22	22	4.65	1~10	6.4	11021022	5.3
WSSH24	24	5.53	1~10	6.4	11021022	8
WSSH26	26	6.48	1~10	8	14027025	8
WSSH28	28	7.51	1~10	8	14027025	8
WSSH30	30	8.63	1~10	10.5	14027028	12.5
WSSH32	32	9.83	1~10	10.5	14027028	12.5
WSSH36	36	12.43	1.5~10	15.2	14027032	15
WSSH40	40	15.34	1.5~10	17	22042038	21.2
WSSH44	44	18.55	1.5~10	24.5	25047045	21.2
WSSH48	48	22.04	1.5~10	24.5	25047045	31.5

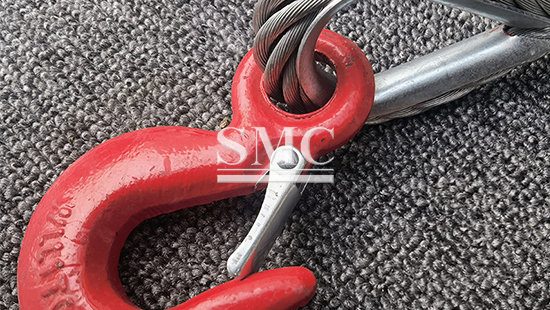

Packaging of single leg steel wire rope sling:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

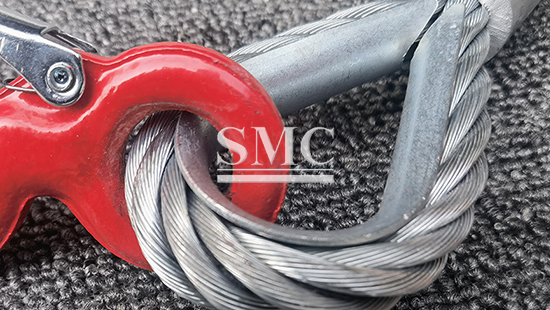

Notes:

1. Prohibit overweight operations

2. For single leg lifting, the suspension point must be vertically above the center of gravity of the lifted object.

3. Do not load with the tip of the hook

4. The normal working temperature of chain rigging is -40 ℃ ~ 150 ℃
