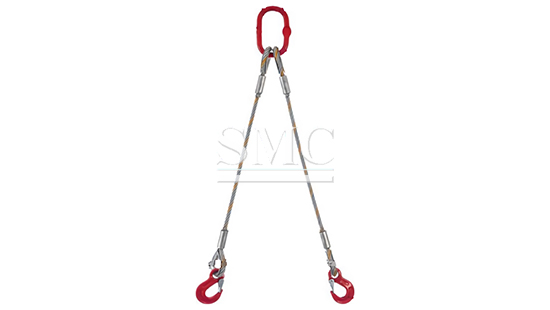

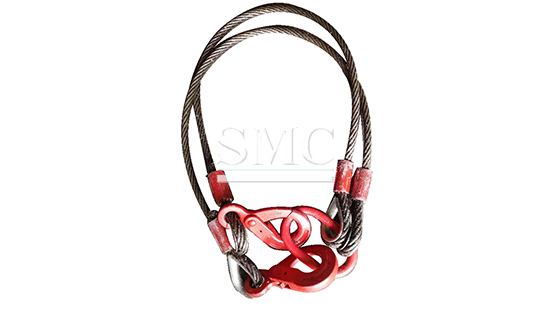

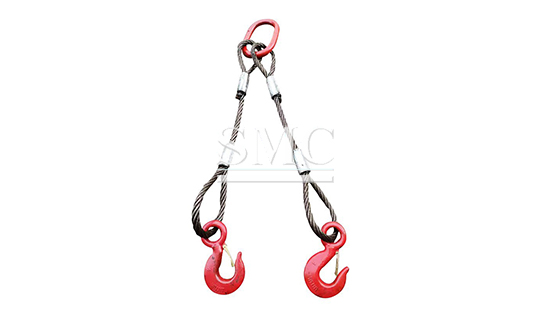

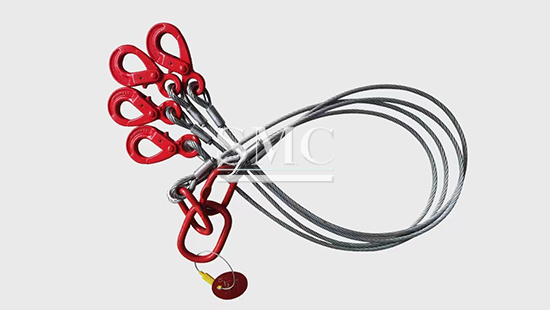

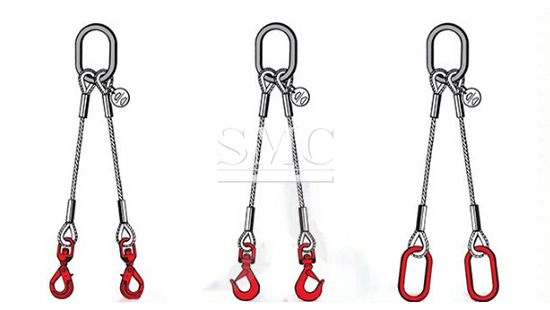

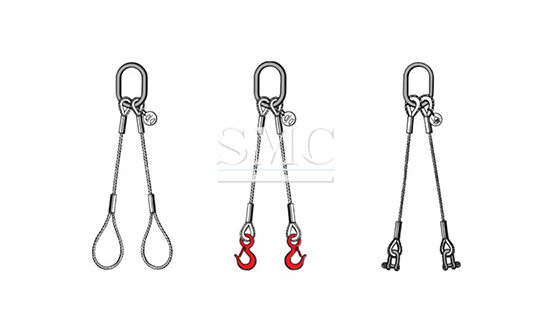

Two Legs Wire Rope Sling with Ring / Hook
Diameter: 6mm~60mm
Structure: 6*19+FC/IWRC,6*37+FC/IWRC
Material: Galvanized steel, SS304, SS316
Shanghai Metal Corporation is a professional manufacturer and supplier of Two Legs Wire Rope Sling with Ring / Hook with high quality and reasonable price.
Two legs wire rope sling with ring or hook is a rope that is processed using steel wire rope as raw material and widely used in industries such as steel, chemicals, transportation, ports, etc. This ring can be used as a dual limb binding ring. When using the dual limb binding ring, only the hook needs to be hooked into the chain, and the rated load will be reduced by 20%.
If you want to know more about Two Legs Wire Rope Sling with Ring / Hook price please feel free to contact us, we will reply you within 24 hours

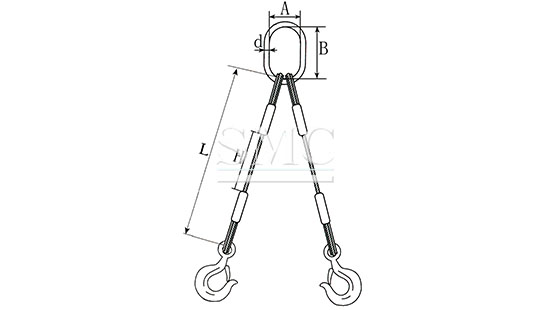

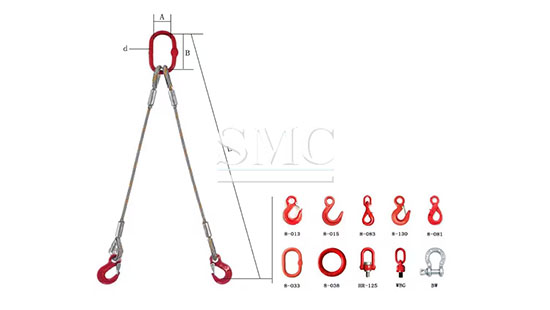

Technical Information of Two Legs Wire Rope Sling with Ring / Hook:
|
Sizes&Types |
Diameter |
Breaking load |
Length |
Main lifting ring |
Main hoist ring size |
Hook |
|
|
mm |
0~90° |
90~120° |
m |
Ton |
AxBxd(mm) |
Ton |
|
|
WSDH06-013 |
6 |
0.48 |
0.35 |
0.5~10 |
2.8 |
100*190*16 |
1.12 |
|
WSDH08-013 |
8 |
0.86 |
0.61 |
0.5~10 |
2.8 |
100*190*16 |
1.12 |
|
WSDH09-013 |
9 |
1.09 |
0.78 |
0.5~10 |
2.8 |
100*190*16 |
1.12 |
|
WSDH10-013 |
10 |
1.34 |
0.96 |
1~10 |
2.8 |
100*190*16 |
1.12 |
|
WSDH11-013 |
11 |
1.63 |
1.16 |
1~10 |
2.8 |
100*190*16 |
2 |
|
WSDH12-013 |
12 |
1.93 |
1.38 |
1~10 |
2.8 |
100*190*16 |
2 |
|
WSDH13-013 |
13 |
2.27 |
1.62 |
1~10 |
2.8 |
100*190*16 |
2 |
|
WSDH14-013 |
14 |
2.62 |
1.87 |
1~10 |
2.8 |
100*190*16 |
2 |
|
WSDH16-013 |
16 |
3.45 |
2.46 |
1~10 |
6.4 |
110*210*22 |
3.15 |
|
WSDH18-013 |
18 |
4.35 |
3.1 |
1~10 |
6.4 |
110*210*22 |
3.15 |
|
WSDH20-013 |
20 |
5.37 |
3.84 |
1~10 |
6.4 |
110*210*22 |
5.3 |
|
WSDH22-013 |
22 |
6.51 |
4.65 |
1~10 |
8 |
140*270*25 |
5.3 |
|
WSDH24-013 |
24 |
7.74 |
5.53 |
1~10 |
8 |
140*270*25 |
8 |
|
WSDH26-013 |
26 |
9.08 |
6.48 |
1~10 |
10.5 |
140*270*28 |
8 |
|
WSDH28-013 |
28 |
10.52 |
7.51 |
1~10 |
10.5 |
140*270*28 |
8 |
|
WSDH30-013 |
30 |
12.09 |
8.63 |
1~10 |
15.2 |
140*270*32 |
12.5 |
|
WSDH32-013 |
32 |
13.76 |
9.83 |
1~10 |
15.2 |
140*270*32 |
12.5 |
|
WSDH36-013 |
36 |
17.41 |
12.43 |
1.5~10 |
24.5 |
250*470*45 |
15 |
|
WSDH40-013 |
40 |
21.47 |
15.34 |
1.5~10 |
24.5 |
250*470*45 |
21.2 |

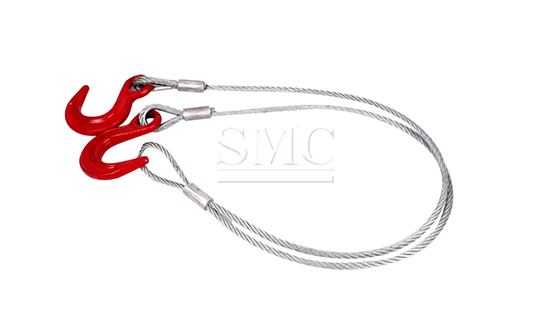

Packaging of Two Legs Wire Rope Sling with Ring / Hook:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Notes:
1.Before using the steel wire rope sling, it is necessary to have a clear understanding of the working load and scope of application, and overloading is strictly prohibited.
2. Before using the steel wire sling, hang the sling directly into the center of force on the hook and not onto the hook tip.
3. Before using the two leg wire rope sling, hang the sling directly into the double hooks, and hang the sling at the symmetrical stress center of the double hooks.
4. Steel wire rope sling is prohibited from tying knots and direct contact with the wire rope. It should be separated by shackles or lifting rings.
5. If abnormal noise occurs during the load operation of the steel wire rope ring, it should be stopped from use and handled after being inspected by qualified personnel.
