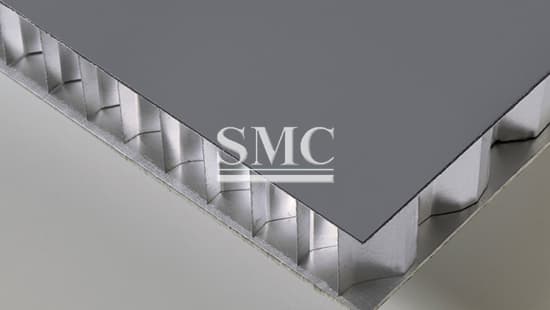

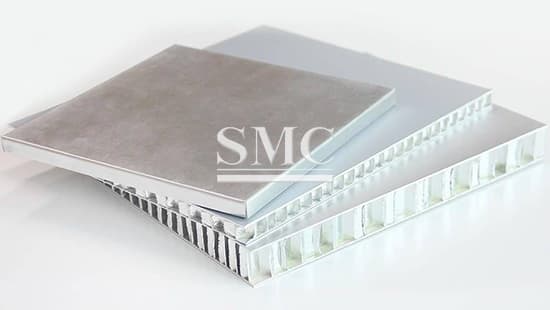

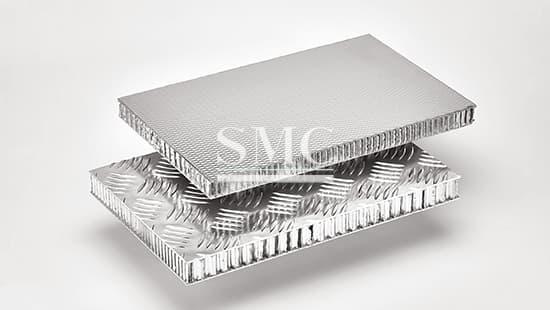

Aluminum Honeycomb Panel

    Total Thickness: 6mm - 200mm


    Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm


    Standard size: 1220x2440, Other size can be customized

Aluminum honeycomb panel, suitable for civil buildings, car and boat decoration, etc. It is the application of aviation and aerospace materials in the field of civil

construction. The entire processing process is completed in a modern factory, using hot press forming technology, due to the high heat transfer value between

the aluminum skin and the honeycomb, the thermal expansion and contraction of the inner and outer aluminum skins are synchronized; the honeycomb aluminum

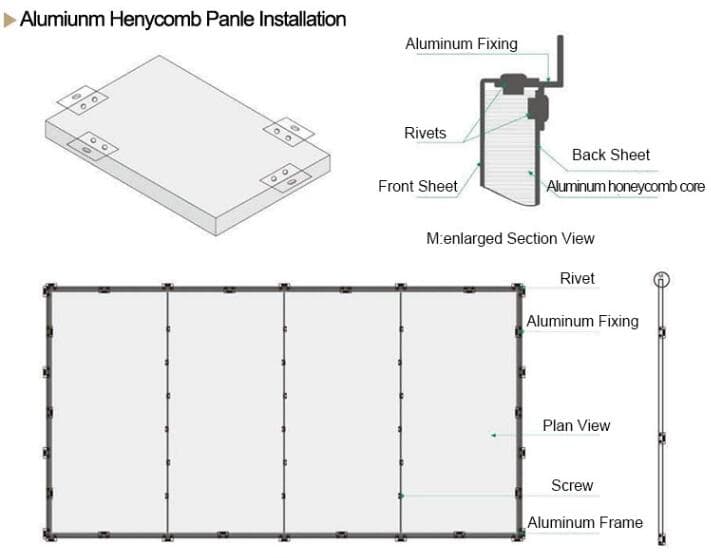

skin has small holes, so that the gas inside the plate can be free. Flow; the slidable mounting buckle system does not cause structural deformation during thermal

expansion and contraction.
Shanghai Metal Corporation is a professional manufacturer and supplier of Aluminum honeycomb panel with high quality and reasonable price. If you want to know

more about Aluminum honeycomb panel products or Aluminum honeycomb panel price please feel free to contact us, we will reply you within 24 hours.


Specifications of Aluminum Honeycomb Panel:

1) Total Thickness: 6mm - 200mm
2) Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
3) Standard size: 1220x2440
4) Other size can be customized
5) Max. width: 2000mm
6) Max. length: 10000mm
7) Colors: RAL colors
8) Quality Warranty: 20 years

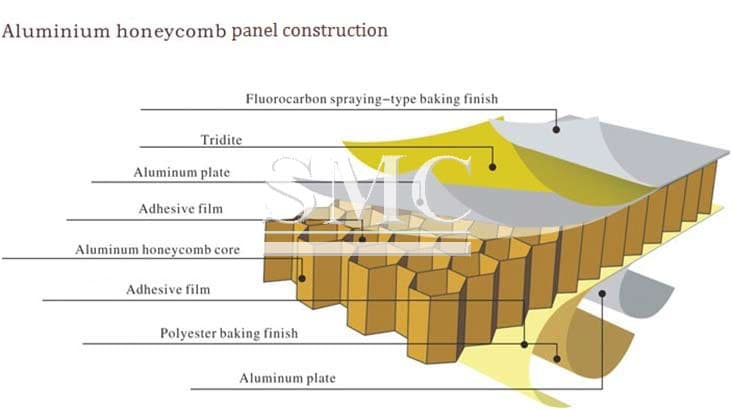

TOP ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated

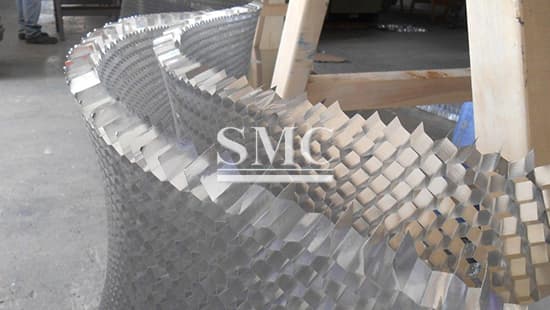

ALUMINUM CORE
1) Hexagonal cells, Alloy series 3003
2) Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
3) Foil thickness: from 50 to 80 microns

BOTTOM ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated

On request: Special alloys, treatments and coating with RAL colors

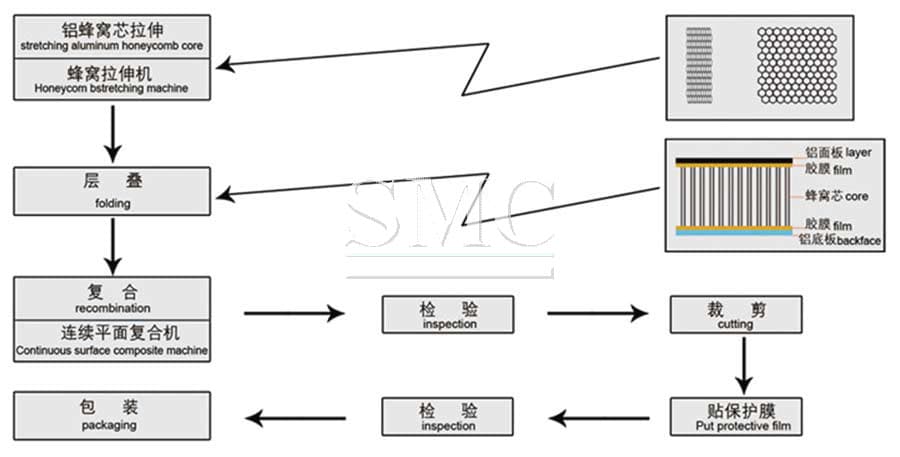

Manufacturing of Aluminum Honeycomb Panel

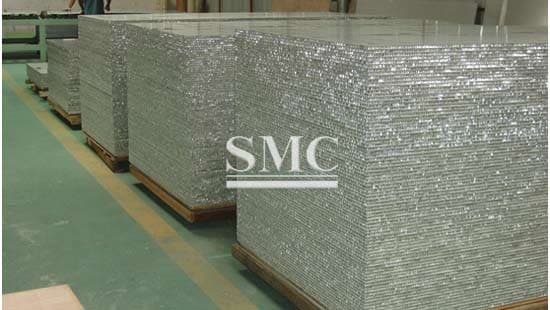

Packaging of Aluminum Honeycomb Panel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Aluminum Honeycomb Panel:

1) Curtain Wall

2) Metal partition for toilet

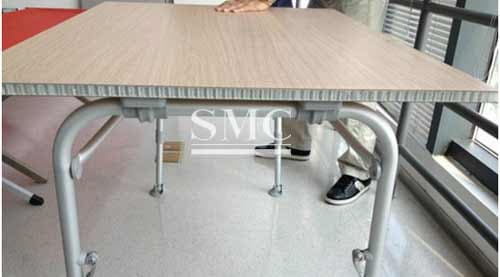

3) Indoor Decoration, wall material, decoration material for lift and elevator, Funiture

4) Transportation Industry



Advantages of Aluminum Honeycomb Panel:

1) Light weight, energy saving, can greatly reduce the object load, easy to install, maintain and recyclable

2) High strength, good rigidity, not easily deformed, bearing large

3) Good sound insulation, heat insulation, moisture proof, fire proof, non-toxic, environmental protection

4) High peel strength, weather resistance, paint cover lasting, anti-weathering, anti-chemical corrosion, luxurious appearance, durable



Features of Aluminum Honeycomb Panel:

1) Fireproof

2) Heat & Sound Insulation

3) Rust resistant

4) Weathering resistance
