Thickness: 0.4mm ~ 2.0mm

Standard: ASTM/JIS/GBT/EN etc

Width: 600mm ~ 1500mm

Product Detail | Technical Information | Packaging | More

Product Detail

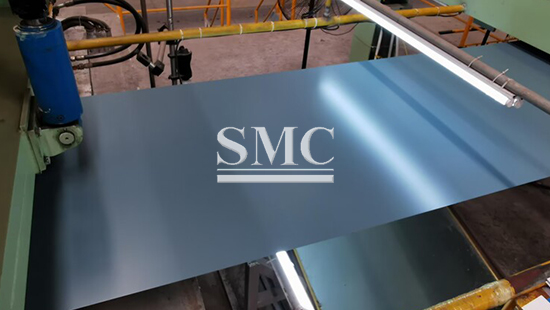

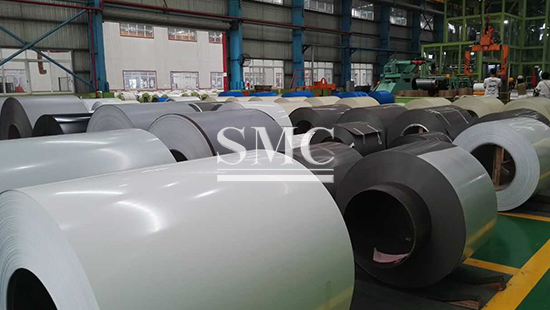

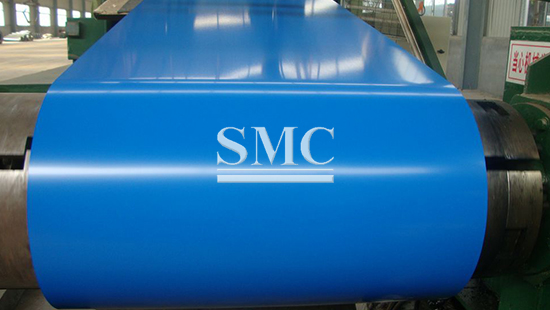

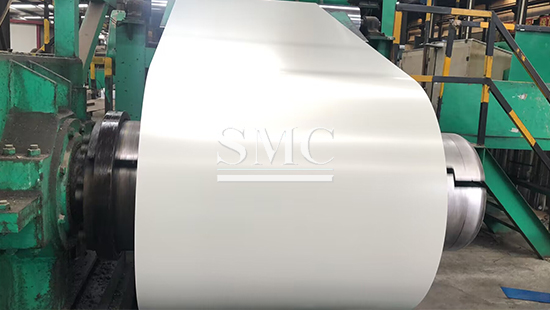

Shanghai Metal Corporation is a professional manufacturer and supplier of Anti-Microbial Plus Coated Steel Sheets with high quality and reasonable price.

Anti-Microbial Plus Coated Steel Sheets have excellent antibacterial effects on common bacteria such as Staphylococcus aureus, Pseudomonas aeruginosa, and Escherichia coil in daily life. It is applied to the shaping of air conditioning ducts and indoor compartment decoration panels, and has been successfully adopted in schools and hospitals

Combining corrosion- resistant surface passivation and anti-microbial additives, we successfully bring you polyester painted steel sheets with anti- microbial function . The anti- microbial additives effectively and lastingly inhibit the growth of bacteria which give rise to odor, stain, food poisoning, and allergies.

If you want to know more about Anti-Microbial Plus Coated Steel Sheets price please feel free to contact us, we will reply you within 24 hours

Top paint/back paint: 5+15μm/7-9μm or 5+20μm/10-12μm or as per client’s needs

Color: Any color as per client’s needs

Coil ID: 508mm/610mm

Coil weight: as per client’s needs

Pack: vertical or horizontal package

1. Anti-microbial plus metallic coated steel sheets

2. Anti-microbial plus color coated steel sheets

3. Antistatic & anti-microbial plus color coated steel sheets

1. Biomedical factory buildings

2. Food factories

3. Hospitals

4. Freezer vans

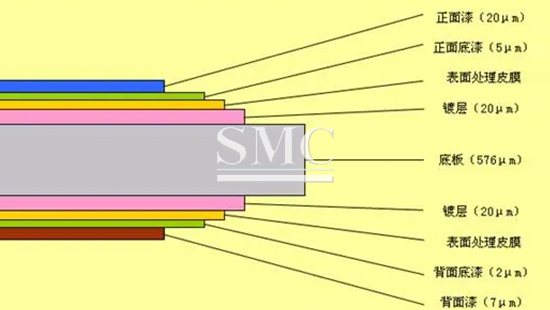

Technical Information of Anti-Microbial Plus Coated Steel Sheets:

Base metal of Prepainted steel					Application
Hot-dip Zinc	Hot-dip Zinc-Fe alloy	Hot-dip Al-Zinc alloy	Hot-dip Z-Al alloy	Eletro-galvanized	Application
TDC51D+Z	TDC51D+ZF	TDC51D+AZ	TDC51D+ZA	TDC01+ZE	CQ
TDC52D+Z	TDC52D+ZF	TDC52D+AZ	TDC52D+ZA	TDC03+ZE	DQ
TDC53D+Z	TDC53D+ZF	TDC53D+AZ	TDC53D+ZA	TDC04+ZE	DDQ
TDC54D+Z	TDC54D+ZF	TDC54D+AZ	TDC54D+ZA	/	EDDQ
TS250GD+Z	TS250GD+ZF	TS250GD+AZ	TS250GD+ZA	/	Structure
TS280GD+Z	TS280GD+ZF	TS280GD+AZ	TS280GD+ZA	/	Structure
/	/	TS300GD+AZ	/	/	Structure
TS320GD+Z	TS320GD+ZF	TS320GD+AZ	TS320GD+ZA	/	Structure
TS350GD+Z	TS350GD+ZF	TS350GD+AZ	TS350GD+ZA	/	Structure
TS550GD+Z	TS550GD+ZF	TS550GD+AZ	TS550GD+ZA	/	Structure

Steel Grade	Y.S/MPA	T.S/MPA	EL./ ≥%
TDC51D+Z/ZM/AZ	240 ~ 380	270 ~ 500	22
TDC52D+Z/ZM/AZ	140 ~ 300	270 ~ 420	26
TDC53D+Z/ZM/AZ	140 ~ 260	270 ~ 380	30
TDC54D+Z/ZM/AZ	120 ~ 220	260 ~ 350	36

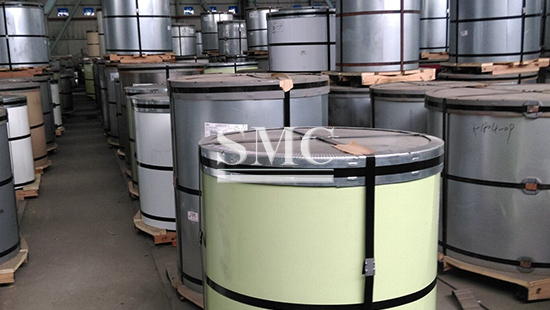

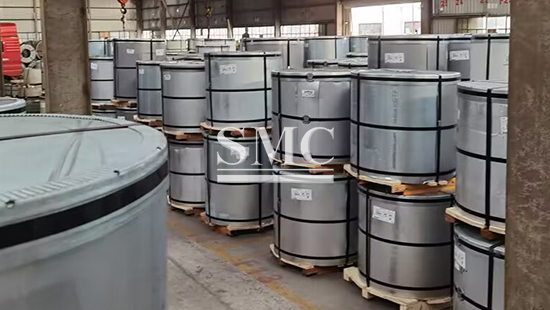

Packaging of Anti-Microbial Plus Coated Steel Sheets:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Notes:

1.Inspection must be carried out for the incoming proﬁle sheets to ensure that they are not affected by humidity during transportation.

2.The profile sheets at job site should be stored indoors, or at least be placed upon wooden sleepers and a waterproof cover should be placed over the bundle while allowing for air circulation under the cover.

3. While handling , transporting , forming , processing and installing, the surface of the steel sheets should be protected with extra care in order to keep the surface intact. Once the surface is damaged, the anti-microbial efﬁcacy will decline.

Any improper lubricants used will affect the function of steel sheet and pollute its surface. We strongly recommend not to do so, unless necessary.
