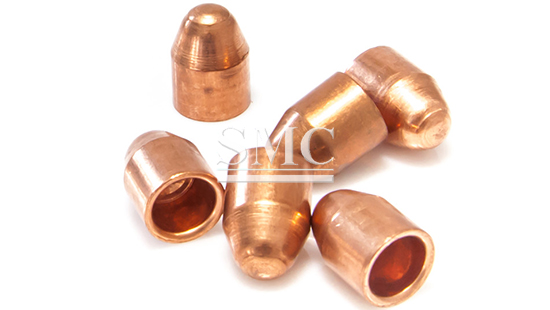

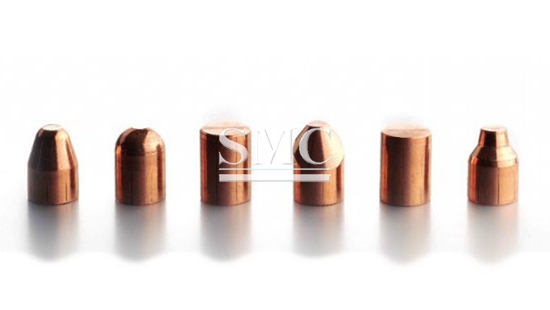

Chromium Zirconium Copper Electrode Cap

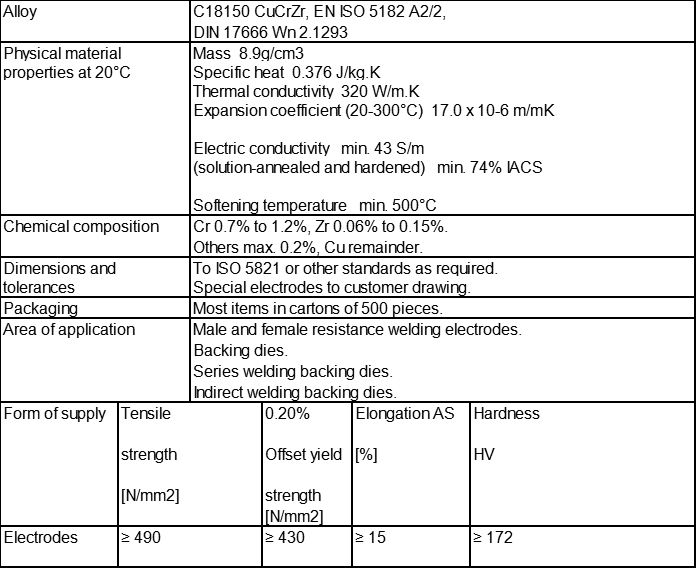

    Material:CuCrZr (American standard number  C18150)


    Specific heat: 0.376 J/kg.K

    Thermal conductivity: 320 W/m.K

Shanghai Metal Corporation is a leading Electrode cap supplier and manufacturer.

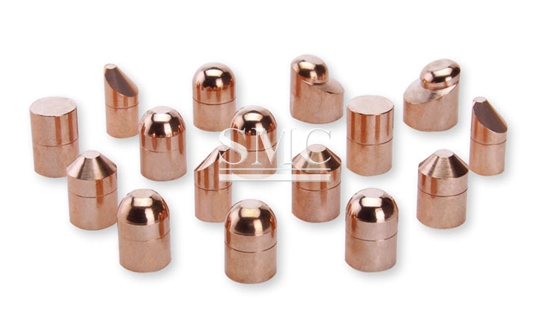

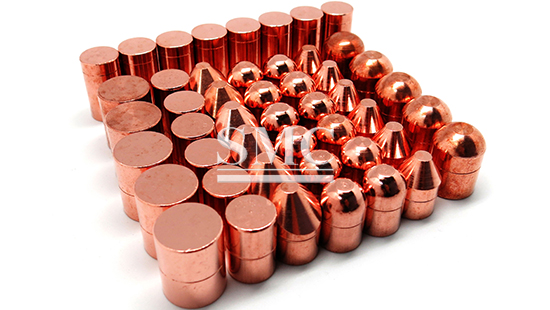

Electrode caps and shanks are two-part electrodes statutable for the straight electrodes and can offer major economies. SMC offers cold-formed cap electrodes in full range of nose design, alloys and sizes. Caps are cold forged without additional machining, making them distinguished for their metallurgical property (high conductivity and resistance to deformation), consistent performance and long life. The lower percentage of chrome in comparison to the standard Class 2 CuCr material and the addition of Zr to this Copper alloy discourage the alloying affect of zinc and copper to form brass on the electrode face and help to prevent sticking. The universal cap electrodes for reliable resistance welding of light-to-medium gauge coated and uncoated steels. Produced by proprietary billet casting process, freedom from oxygen allows us to alloy the copper with the optimum levels of chrome and zirconium. Electrodes are cold headed or machined to suit the required shape. We have long history of supplying high quality CuCrZr.

If you want to know more about our Electrode Cap price please feel free to contact us, we will reply you within 24 hours.

  • Size: Customized

    Tensile strength: 460~640Mpa

    Yield strength: 400~570Mpa

    Elongation: 10~20%

    Hardness: 73~90 HRB

    Conductivity: 44~50 MS/m

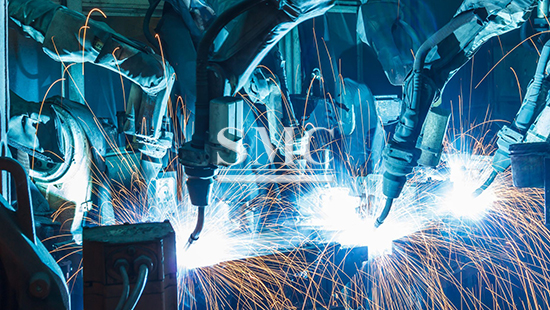

  • Hardware welding

    Welding of auto parts

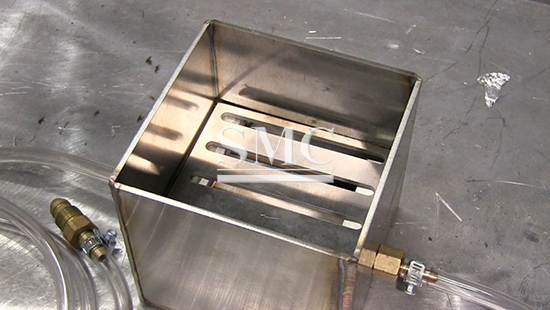

    Welding of metal box

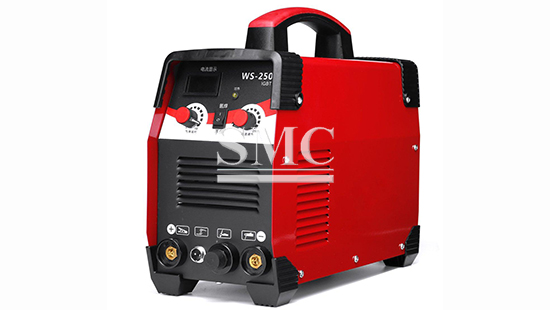

    Electric welding machine
