Diameter: 6mm~150mm

Core: IWRC,FC

Material: Galvanized, Ungalvanized, Stainless steel

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Endless Loop Steel Wire Rope with high quality and reasonable price.

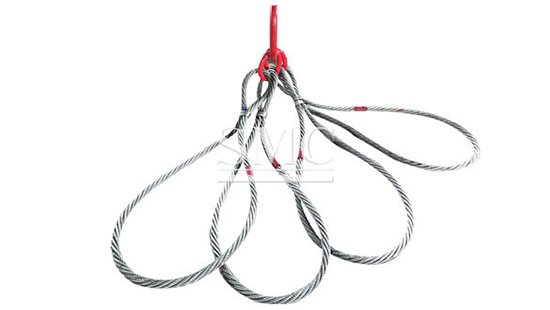

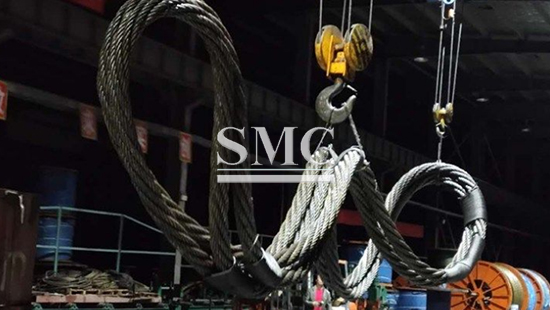

The endless loop sling is a type of steel wire rope, which is a circular loop sling; The notable features are good flexibility, multiple lifting points, high strength, and small lifting space requirements, making it particularly suitable for lifting large objects in limited space or oversized lifting projects, such as transformers, shipbuilding, and special machinery manufacturing environments.

If you want to know more about Endless Loop Steel Wire Rope price please feel free to contact us, we will reply you within 24 hours

Structure: 6x19, 6x37...

Tensile strength: 1670Mpa, 1770Mpa

Standard: GB/T30587-2014

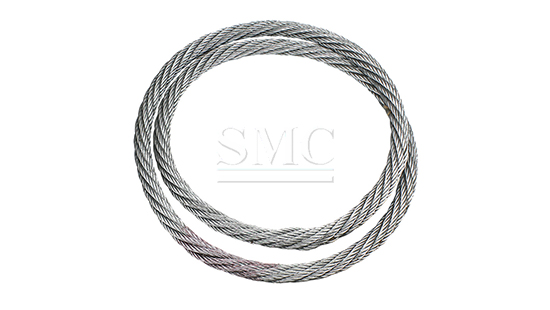

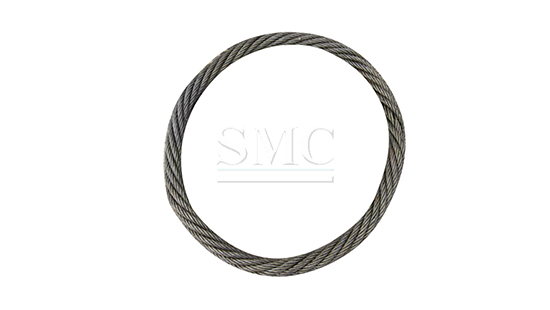

endless loop

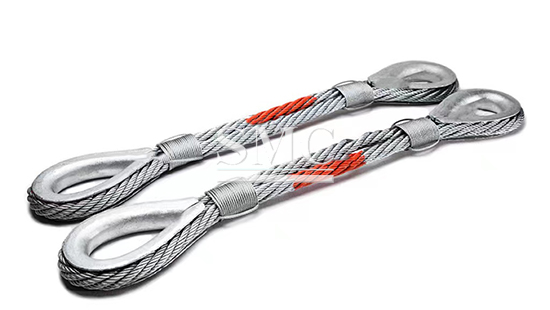

double buckle endless loop

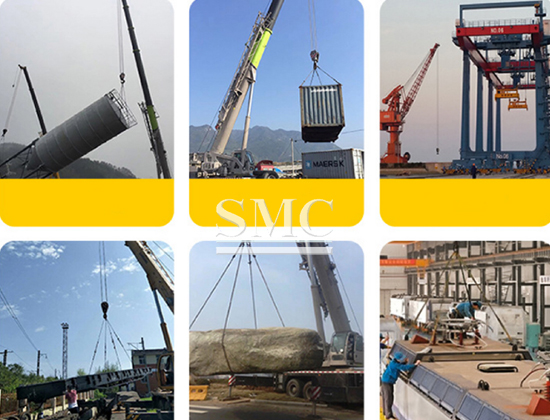

1. Chemical industry

2. Transportation

3. Construction

4. Building

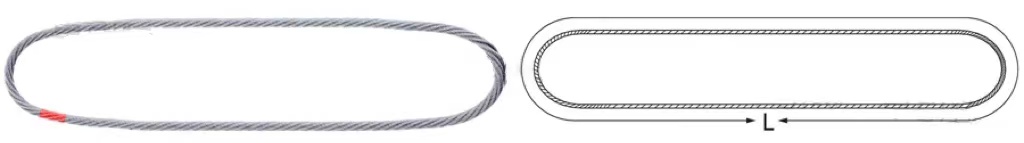

Technical Information of Endless Loop Steel Wire Rope:

Model No.	Mini. Breaking Load	Single rated load	Dual rated load(KN)		Weight
Model No.	KN	KN	0~90°	90~120°	kg/m
WT15	125	25	45	35	0.67
WT18	181	36	65	51	0.97
WT21	246	49	88	69	1.33
WT24	321	64	116	90	1.72
WT27	407	81	147	114	2.18
WT30	503	101	181	141	2.7
WT33	608	122	219	170	3.27
WT36	723	145	260	202	3.88
WT39	850	170	306	238	4.56
WT42	985	197	355	276	5.29
WT48	1285	257	463	360	6.91
WT54	1632	326	588	457	8.73
WT60	2009	402	723	563	10.76
WT66	2428	486	874	680	13.02
WT72	2897	579	1043	811	15.52
WT78	3397	679	1223	951	18.25
WT84	3937	787	1417	1102	21.13
WT90	4519	904	1627	1265	24.25
WT96	5141	1028	1851	1439	27.6
WT102	5814	1163	2093	1628	31.19
WT108	6508	1302	2343	1822	34.94
WT114	7252	1450	2611	2031	38.99
WT120	8038	1608	2894	2251	43.2
WT126	8864	1773	3191	2482	47.57
WT132	9731	1946	3503	2725	52.25
WT138	10608	2122	3819	2970	57.08
WT144	11628	2326	4186	3256	62.15
WT150	12546	2509	4517	3513	67.45
WT156	13566	2713	4884	3798	72.99
WT162	14688	2938	5288	4113	78.76
WT168	15708	3142	5655	4398	85
WT174	16932	3386	6096	4741	90.46
WT180	18054	3611	6499	5055	97.48
WT186	18564	3713	6683	5198	108.39
WT192	19788	3958	7124	5541	115.41
WT198	21012	4202	7564	5883	122.43
WT204	22338	4468	8042	6255	130.23
WT210	23664	4733	8519	6626	138.02
WT216	24990	4998	8996	6997	145.82
WT222	26418	5284	9510	7397	154.4
WT228	27846	5569	10025	7797	162.98
WT234	29376	5875	10575	8225	171.56
WT240	30804	6161	11089	8625	180.13

Packaging of Endless Loop Steel Wire Rope:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

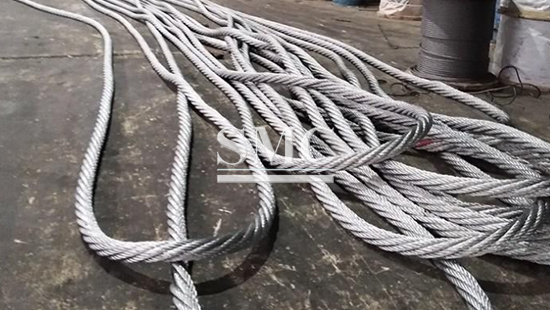

Notes:

1. Avoid heavy objects falling suddenly from a height or suddenly breaking during use, resulting in accidental injury.

2. It is prohibited for the rigging to come into contact with sharp metal, and it is also important to avoid friction, scratches, or squeezing with sharp objects during use.

3. For rigging with twisting or other abnormal conditions, it should be immediately stopped from use and repaired or replaced.

4. Operators must wear appropriate safety equipment when using rigging, such as gloves, safety shoes, helmets, etc.

5. After using the rigging, it should be cleaned, inspected, and stored immediately.
