Diameter: 6mm~60mm

Structure: 6*19+FC/ IWRC, 6*37+FC/ IWRC

Material: Galvanized steel

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of U type wire rope sling for crane & hoist with high quality and reasonable price.

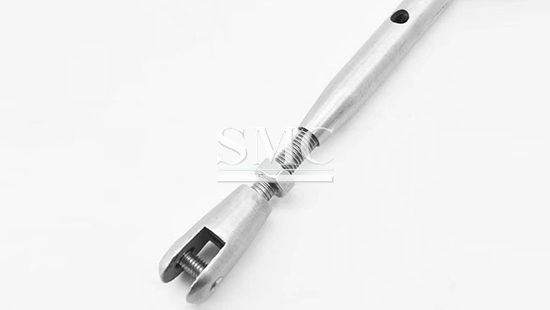

U type wire rope sling for crane & hoist usually uses galvanized steel wire rope as raw material to enhance rust resistance when used in damp or outdoor environments. It consists of a U type machined parts, an adjusting nut, and a locking nut. U type pressed parts are usually made of high-strength steel and have good corrosion resistance and wear resistance. Adjusting and locking nuts are usually made of stainless steel to prevent rust and corrosion.

If you want to know more about U type wire rope sling for crane & hoist price please feel free to contact us, we will reply you within 24 hours

Core: FC, IWRC

Standard: GB/T20118

Tensile strength: 1670Mpa, 1770Mpa,1960Mpa, 2160Mpa

1. U-type standard steel wire rope sling.

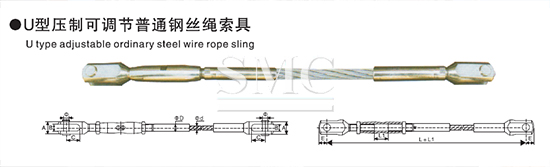

2. U-type adjustable steel wire rope sling.

1. Construction

2. Electricity

3. Nuclear power

4. Railways

5. Crane and port

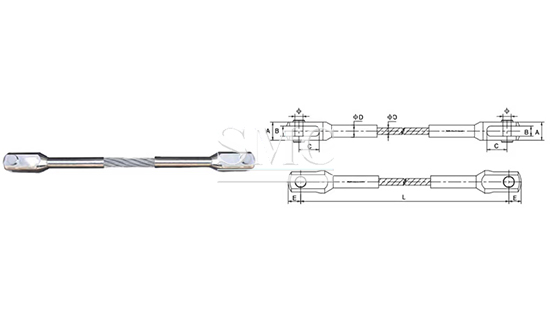

Technical Information of U type wire rope sling for crane:

Type	Size(mm)							Breaking Load
Type	d	A	B	C	D	E	Φ	KN
US06	6	24	12	25	12	17	12	3.4
US09	9	28	14	29	18	21	14	7.8
US11	11	30	16	32	20	23	16	12
US13	13	38	20	40	22	28.5	20	16
US14	14	42	22	45	26	30.5	22	19
US16	16	46	24	50	28	34	24	24
US18	18	52	28	55	32	38	25	31
US20	20	58	30	61	36	39.5	26	38
US22	22	62	34	68	40	45.5	30	46
US24	24	68	38	75	44	51	33	55
US26	26	72	40	80	44	54	36	65
US28	28	78	42	82	48	57	38	75
US30	30	86	46	90	52	60.5	40	86
US32	32	94	50	98	56	66.2	44	98
US34	34	98	52	102	60	68.5	46	110
US36	36	104	54	106	64	71	49	124

Packaging of U type wire rope sling for crane:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Notes:

1. U type wire rope sling for crane & hoist is to connect and adjust the length of the steel wire rope to meet different application requirements. It is usually used in the fields of lifting, traction, fixation, and support. When in use, thread the steel wire rope through the U-shaped pressed parts, adjust the length of the steel wire rope by adjusting the nut, and finally secure it with a locking nut.

2.In addition to the wear and tear of the outer steel wire, the U type crane wire rope sling is mainly broken due to metal fatigue caused by repeated bending when bypassing the hook or object being lifted. Therefore, the ratio of the diameter of the hook or object being lifted to the pressed steel wire rope is an important factor determining the service life of the U type crane wire rope sling.

3.U type crane wire rope sling is mainly used in transportation that requires high-strength wire ropes such as lifting and pulling. During use, it is strictly prohibited to stand under or pass through objects being lifted.
