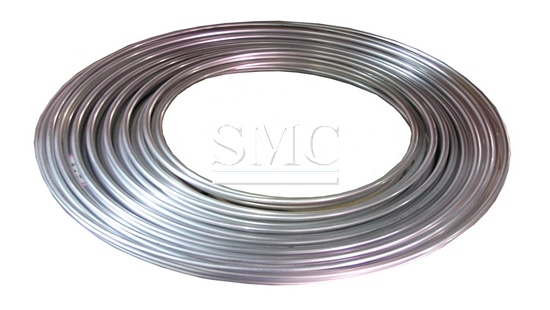

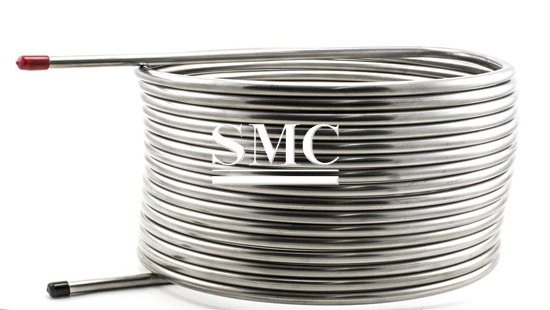

Copper & Brass Tube/Tube Coil

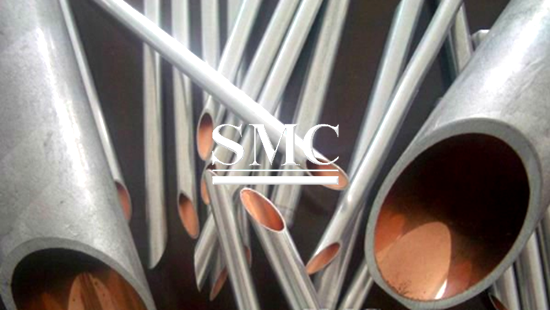

Aluminum Clad Copper Tube

    Outside Diameter: 6.35mm - 19.05mm



    Wall Thickness: 0.5mm - 1.50mm



    Tensile: >125MPa



    Elongation: >35%

Specifications of Aluminum Clad Copper Tube:
1) Grade: C11000copper, 3003aluminum
2) Outside Diameter: 6.35mm - 19.05mm
3) Wall Thickness: 0.5mm - 1.20mm
4) Tensile: 110MPa - 130MPa
5) Expanding: 40% - 50%
6) Blast pressure: 180MPa


Aluminum:3003


Copper: T2 (C1100 in JIS;C11000 in ASTM)



Features for Aluminum Clad Copper Tube:
1) Good heat-transmit performance
2) Heat conduction
3) Good elongation
4) Being extruded and processed well
5) Good corrosion-resistance
6) Climate-hardiness
7) Excellent heat-sinking capability

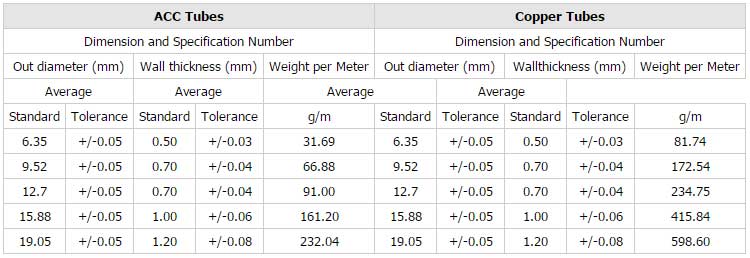

Nominal Datum of Aluminum Clad Copper Tube :

Specific Gravity: 3.4g/cu.cm

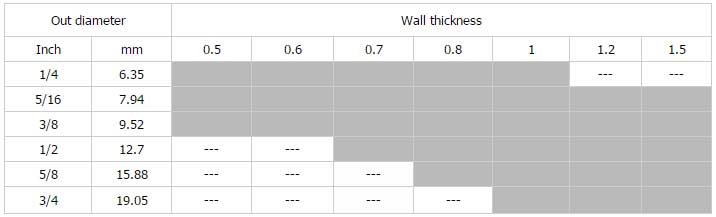

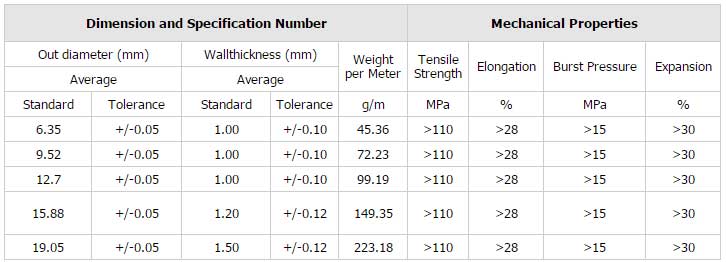

Bright Tubes:

*Shadowed area show the normal products we can make.
* If you have special request, please contact us.

* If you have special request, please contact us.

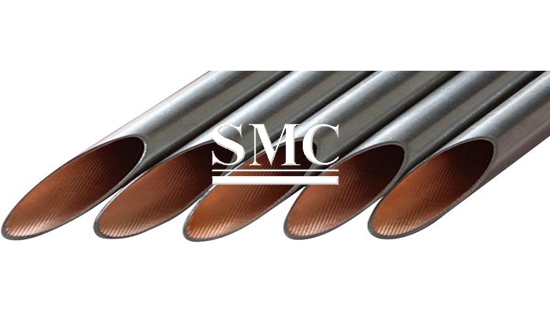

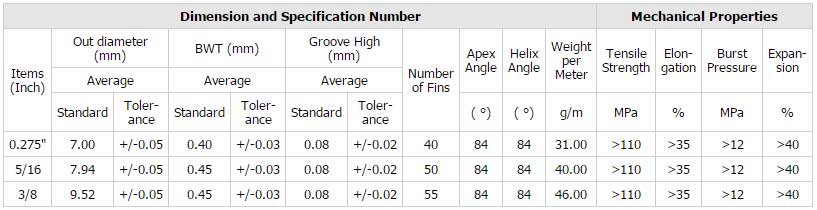

Inner Grooved Tubes:

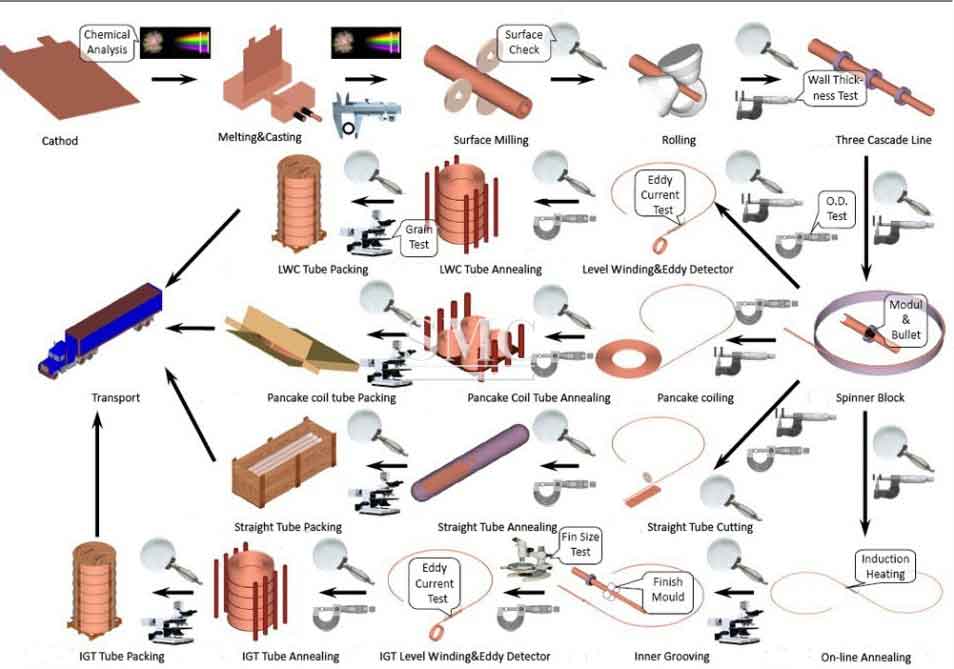

Manufacturing of Aluminum Clad Copper Tube

Packaging of Aluminum Clad Copper Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Aluminum Clad Copper Tube:

1) Aluminum Clad Copper Tube for Air-condition

2) Aluminum Clad Copper Tube for Refrigeration

3) Aluminum Clad Copper Tube for Cooler

4) Aluminum Clad Copper Tube for Dehumidifier

5) Aluminum Clad Copper Tube for Heat exchanger

6) Aluminum Clad Copper Tube for Other industries
