Size: 1/4'' to 5''

Type: G-416

Material: carbon steel

Surface treatment: Hot dipped galvanized, Power coated

Product Detail | Technical Information | Packaging | More

Product Detail

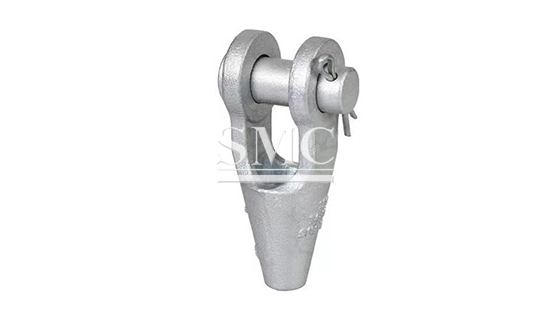

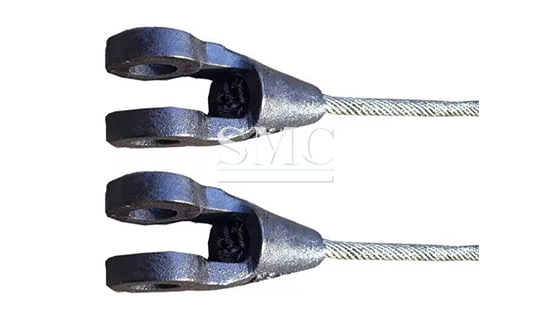

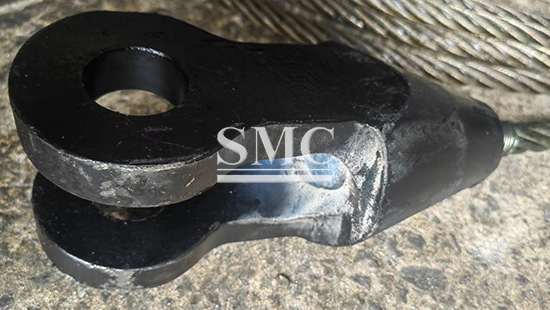

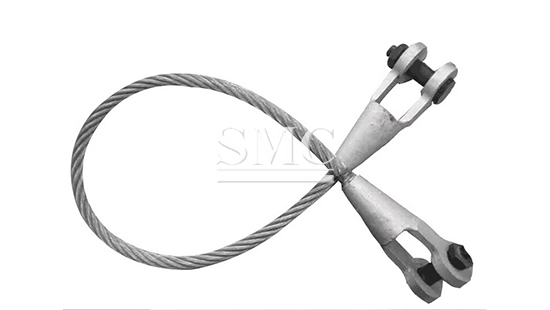

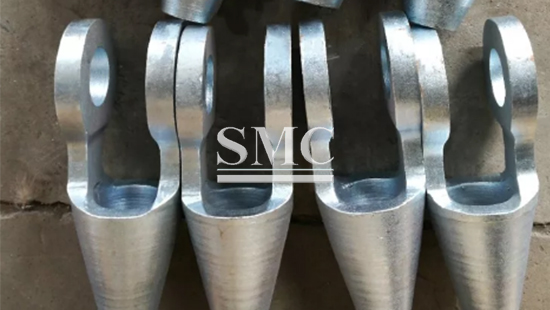

Shanghai Metal Corporation is a professional manufacturer and supplier of G416 open type spelter socket with high quality and reasonable price.

The G416 & G417 spelter socket consists of an inner jacket, cable joint bolts, and nuts. The inner sleeve and outer sleeve are two circular parts, with threaded holes on the inner sleeve and threaded protrusions on the outer sleeve. The open spelter socket is a key component connecting the inner sleeve, which has two parts thread and head. Nut is a component used to secure the cable joint bolt. It has the characteristics of simplicity, reliability, ease of installation and disassembly, and is widely used in fields such as automation equipment and mechanical transmission systems.

If you want to know more about G416 open type spelter socket price please feel free to contact us, we will reply you within 24 hours

Size: 1/4’’ ~ 5’’

Type: G-416

Material: Carbon steel

Standard: CB 654-1984

1.Open type spelter socket

2. Closed type spelter socket

1. Mechanical transmission

2. Automation equipment

3. Construction

4. Port

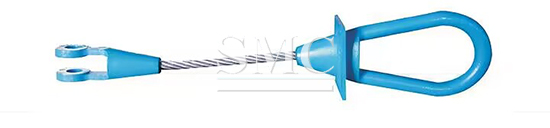

Technical Information of G416 open type spelter socket:

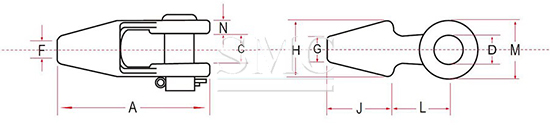

G416 open type spelter socket
Type size	Diameter	A (mm)	B (mm)	C (mm)	D (mm)	G (mm)	H (mm)	J (mm)	L (mm)	M (mm)	N (mm)	B (mm)
1/4	φ6 ~ φ7	116	23	17	10	18	41	57	40	33	9	0.5
5/16 ~3/8	φ8 ~ φ10	123	21	21	13	21	43	57	44	38	11	0.6
7/16 ~1/2	φ11 ~ φ13	142	25	25	15	24	51	64	51	48	13	1
9/16 ~5/8	φ14 ~φ16	172	32	30	18	28	60	76	64	57	14	1.6
3/4	φ18	202	38	35	21	32	70	89	76	67	16	2.6
7/8	φ20 ~ φ22	235	44	41	24	38	84	102	89	80	20	4.4
1	φ24 ~ φ26	269	51	51	29	44	95	114	102	95	22	7
1-1/8	φ28 ~ φ30	303	57	57	32	51	107	127	117	105	25	9.8
1-1/4 ~1-3/8	φ32 ~ φ36	335	64	64	38	57	122	140	127	121	29	14.1
1-1/2	φ38	384	76	70	41	70	136	152	152	137	30	21.4
1-5/8	φ40 ~ φ42	412	76	76	44	76	142	165	165	146	33	25
1-3/4 ~ 1-7/8	φ44 ~ φ48	464	89	89	51	80	169	191	178	165	40	37.2
2 ~ 2-1/8	φ52 ~ φ54	545	102	95	57	95	194	228	228	178	46	58.5
2-1/4 ~ 2-3/8	φ56 ~ φ60	606	114	108	64	102	222	254	254	197	54	75.8
2-1/2 ~ 2-5/8	φ64 ~ φ66	654	127	121	73	114	247	273	173	216	60	114.3
2-3/4 ~ 2-7/8	φ70 ~ φ74	692	133	127	79	124	279	279	279	229	73	142.9
3 ~ 3-1/8	φ76 ~ φ80	737	146	133	86	133	298	305	286	241	76	172.4
3-1/4 ~ 3-3/8	φ82 ~ φ86	784	159	140	92	146	317	328	298	254	79	196.9
3-1/2 ~ 3-5/8	φ88 ~ φ92	845	172	152	99	165	338	360	318	273	83	255.4
3-3/4 ~ 4	φ95 ~ φ102	921	191	178	108	184	369	389	343	318	89	355.2

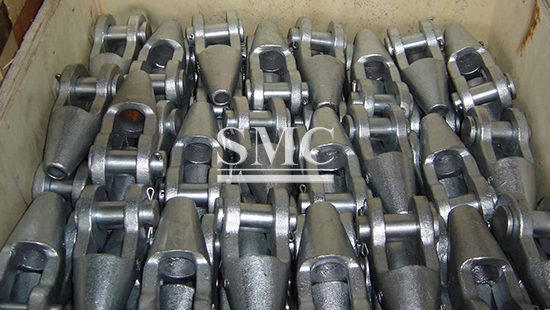

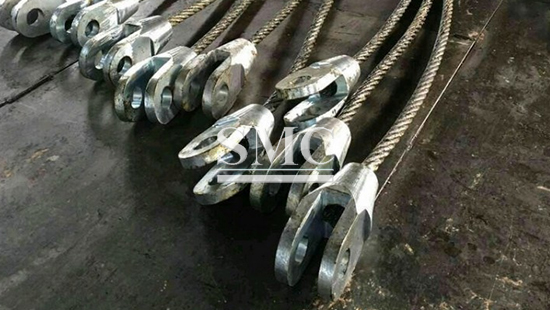

Packaging of G416 open type spelter socket:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Notes:

1. Do not use damaged rigging

2. Do not twist or twist the rigging during lifting

3. Do not knot the rigging

4. Avoid tearing open sewing joints or overloading work

5. When moving the rigging, do not drag it

6. Avoid seizing or oscillating loads
